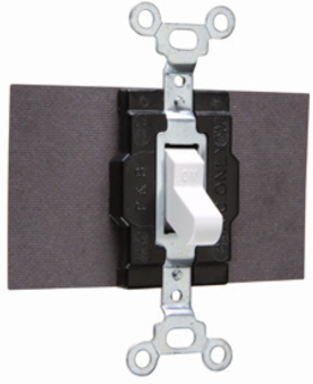

Pass & Seymour 1221W Manual Poke-Thru Controller, White - ADA Compliant, UL Listed, Multiple Finishes
- MPN: 1221W
- UPC: 785007122145
- PPN: P-S-1221W
CAD
$144.77
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Manual Poke-Thru Controller, White - ADA Compliant, UL Listed, Multiple Finishes
Features
- Wide trim flange is designed to meet the ADA Accessibility Guidelines as it pertains to ADA Standard 4.5 which addresses changes in floor and ground surface levels. The poke-thru trim flanges are beveled so the slope is no greater than 1:2 ratio.
- Quick and easy installation without the need for additional fasteners or a second installer.
- Evolution Series Poke-Thru Devices are available in multiple finishes, (BK) black, (GY) gray, (NK) nickel, (BS) brass, (BZ) bronze, (AA) brushed aluminum, (SB) satin brass, and (SN) satin nickel to seamlessly match your environment.
- Satin brass, satin nickel and brushed aluminum finishes offer a more durable, high-end look with a tougher clear powder coat.
- A surface style cover is for mounting on top of the finished floor surface. The surface cover is designed to be used for carpet, tile, wood, polished concrete, or terrazzo.
- Accepts industry standard power, communications and A/V devices from most manufacturers including Legrand AVIP, Extron® and more.
- Designed to fit A/V devices, including wall plate style transmitters, like the Crestron DM/TX series, without any additional parts.
- Evolution Series Poke-Thru Devices use an intumescent material that maintains the fire rating of any floor for up to 2 hours.
- Unique cover design
- UL Fire rated for up to 2-hour rated floors maintains the fire classification of the floor
- UL Listed and UL fire classified to U.S. and Canadian safety standards
- Meets ADA accessibility guidelines
- Open system for expanded compatibility
- Ideal for high foot traffic environments
- Multiple finishes
- Multiple preassembled options: Available in Unwired and Prewired options to save you time on the jobsite
- Installation: The cover opens a full 180 degrees with two unique spring-loaded slide egress doors to keep wires, connections and people safe.
Documentation & Downloads
Specifications
Key Specifications
- Depth
- 1.469 in
- Color
- White
- Finish
- Matte
- Country of Origin
- Mexico
- Load Type
- CFL
- Load Type
- Xenon
- Voltage
- 277 VAC
- Features
- Durable
- Number of Gangs
- 1
- Load Type
- Universal
- Load Type
- Fluorescent
- Load Type
- Incandescent
- Number of Switches
- 1.0
- Wall Plate Included
- No
- Requires Neutral Wire
- Yes
- Application Sector
- Commercial
- Load Rating
- 15 A @ 120/277 VAC
- Wire Connection Type
- Screw Terminals
- Terminal Accommodation
- #14 AWG - #10 AWG
Height3.281 in
Width1.5 in
MaterialThermoplastic
Product LinePass & Seymour
Load TypeLED
Voltage120 VAC
Amperage15.0 A
Load TypeHalogen
Switch TypeToggle
Indoor/OutdoorIndoor
TypeTamper-Resistant
Mounting TypeWall Box
TypeManual Controller
Throw TypeDouble Throw
Number of PolesSingle Pole
Application SectorIndustrial
Connection LocationBack and Side
Warranty Type1-Year Limited Warranty
