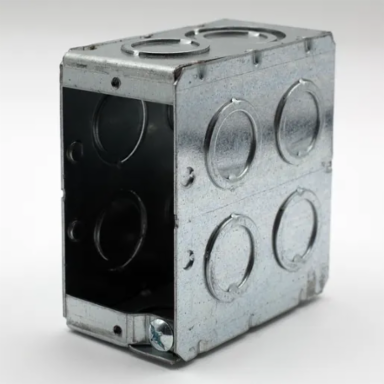

Hubbell HMBD1KBAR Steel 1-Gang Masonry Box, 3-1/2 Inch Deep, 21 Cu. In., 20-Pack
- MPN: HMBD1KBAR
- UPC: 805035056721
- PPN: HBL-HMBD1KBAR
CAD
$20.48
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
1-Gang Masonry Box, 3-1/2 In. Deep, 21 Cu. In., 2 In.Width, 3-3/4 Height, Raised Ground Screw, With Concentric And 1/2 In.KO (20-Pack)
Features
- This 1-gang steel masonry box is explicitly engineered for the flush installation of electrical switches, outlets, or receptacles within brick, block, or concrete tile walls. Its narrow 2-inch width and 3.75-inch height match standard masonry block dimensions perfectly, preventing you from spending extra time cutting and modifying blocks on the job site.
- This premium Hubbell masonry box is fully cETL listed, ensuring it satisfies all rigorous Canadian and international electrical building code standards for flush installation in block, brick, or tile walls. Specifying this certified enclosure removes the risk of costly inspector failures or safety complications down the road, providing absolute peace of mind for engineering teams and building inspectors alike.
- Equipped with a pre-installed raised ground screw, this steel masonry enclosure streamlines your installation process by eliminating the need for secondary grounding clips or separate drilling. The elevated layout keeps your grounding conductor protected and easily accessible, preventing standard wire-binding issues during your final device trim-out.
Documentation & Downloads
Specifications
Additional
- Number of Gangs
- 1-Gang
- Depth
- 3-1/2 in
- Height
- 3-3/4 in
- Material
- Steel
- Knockouts - Side
- 8 x 1/2-3/4 in Combination
- Knockouts - Bottom
- 2 x 1/2-3/4 in Combination
- Drawn or Welded
- Welded
- Compliance
- CSA Certified
Volume21 cu in
Width2 in
Weight0.68 lb
Raised GroundYes
Knockouts - End3 x 1/2-3/4 in Combination, 1 x 1/2-3/4-1 in Combination
Wiring SystemConduit
ColorGray
