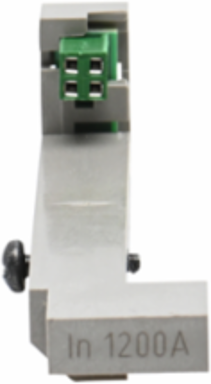

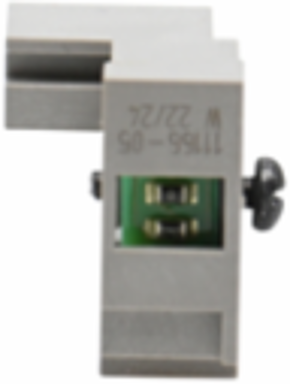

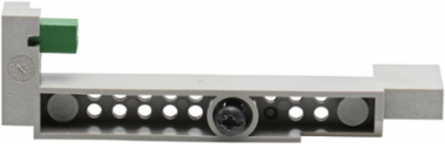

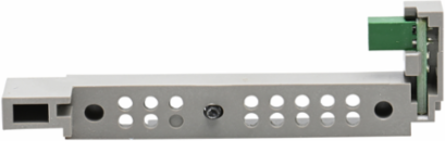

Square D S48824 Circuit breaker accessory, MasterPacT NW, sensor plug, 1200A

Circuit breaker accessory, MasterPacT NW, sensor plug, 1200A

Square D S48824 Circuit breaker accessory, MasterPacT NW, sensor plug, 1200A

MPN: S48824
UPC: 785901219392
PPN: SCH-S48824

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$850.66/ EA

Loading add to cart quantity...

Description

This is an accessory for MasterPact NW circuit breakers. This is a sensor accessory and is field installable. This sensor plug has a rated current of 1200 amps. This product complies with UL and ANSI standards. This sensor accessory has a tightening torque of 0.8 Nm.

Specifications

Complementary

[In] Rated Current: 1200-1200 A

Tightening Torque: 0.8-0.8 N.m

[Uc] Control Circuit Voltage240 V AC || 480 V AC || 600 V AC

Type Of Installationfield installable

Specifications

Range Of Product: MasterPact NW

Product Or Component Type: sensor plug

Accessory / Separate Part Categorysensor accessory

Environment

Product Certifications: UL || ANSI || IEC

Offer Sustainability

Eu Rohs Directive: Under investigation
