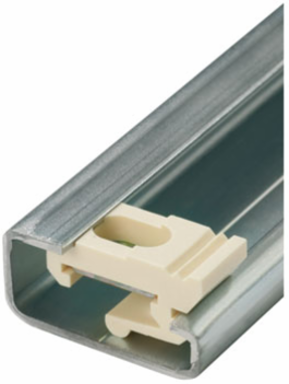

Weidmuller 0503500000 MB M3/M5 CRM
- MPN: 0503500000
- PPN: WDM-0503500000
CAD
$3.44
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Accessories, Sliding nut, Polyamide 66
Documentation & Downloads
Specifications
Approvals
| ROHS | Conform |
|---|
Dimensions And Weights
| Width | 12 mm |
|---|---|
| Height | 25 mm |
| Depth | 14 mm |
| Net weight | 3.55 g |
| Width (inches) | 0.472 inch |
|---|---|
| Height (inches) | 0.984 inch |
| Depth (inches) | 0.551 inch |
Dimensions
| Metric size of the thread, external | 0 M3.0 |
|---|
| Pitch in mm (P) | 12 mm |
|---|
Additional Technical Data
| Explosion-tested version | No |
|---|
| Type of fixing | Snap-on |
|---|
Material Data
| Material | Polyamide 66 |
|---|---|
| Colour | Cream |
| Surface finish | untreated |
|---|---|
| UL 94 flammability rating | V-2 |
Classifications
| ETIM 6.0 | EC000096 |
|---|---|
| eClass 9.0 | 23-11-08-04 |
| eClass 10.0 | 23-11-08-04 |
| ETIM 7.0 | EC000096 |
|---|---|
| eClass 9.1 | 23-11-08-04 |
| UNSPSC | 30-21-18-11 |
System Specifications
| Version | For the mounting rails |
|---|
| Rail | TS 32 |
|---|
Temperatures
| Continuous operating temp., min. | -50 °C |
|---|
| Continuous operating temp., max. | 100 °C |
|---|
