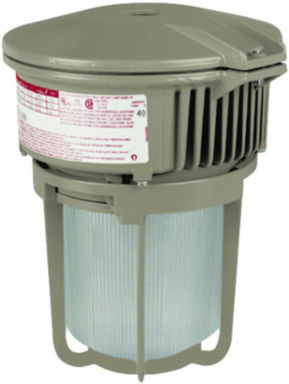

Killark MBL2230A2GLG LED Low Bay Light, 22 Watt, 5000K, 2100 Lumens, Pendant Mount, Hazardous Rated
- MPN: MBL2230A2GLG
- UPC: 783936091969
- PPN: HBL-MBL2230A2GLG
CAD
$1332.94
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The MBL Series is a compact low bay energy efficient LED. The design of the MBL makes it suitable for harsh and hazardous environments using a cast copper-free aluminum. Its low profile and compact design allow the MBL to fit in areas where larger fixtures would not fit while still supplying high quality illumination.
Features
- Supplemental 20KA/10KV Surge Protection is standard for 120-277 VAC models & 10KA/10KV Surge Protection is standard for 347-480 VAC.
- Compact in Size with Traditional Industrial Appearance and Suitability
- Wide variety of optics including globes, globes with reflectors, all-glass refractors, and spintop refractors
- Optional Mounting arrangements including Pendant, Wall, Ceiling, and Stanchion
- MBL LED Housings can be retrofitted to existing MB splice boxes to upgrade from Fluorescent or HID
- Energy Savings – Less than 50 Watts of Power, 25 Watts for MBL2230
- Long Life up to 100,000+ maintenance free hours to 70% initial lumens
- Crisp White Light for Excellent Color Rendering - Chromaticity 5000°K (CCT) 70 CRI
- Ambient suitability -40°C to 40°C (to 55°C for 14W to 22W)
- Instant on – Including after power interruption
- World Voltage 120-277VAC 50/60Hz
- Solder-LESS LED Board Connections – Vibration Resistant
- LM80-08 Measurement of lumen maintenance for LED light sources
- LM79-08 Certified “Absolute” Photometry, including Chromaticity Color for Solid State Lighting
- L70 Values - Industry Nomenclature for Hours of use to 70% of Initial Lumens (TM-21+ Cal.)
- The MBL Series is a compact low bay energy efficient LED. The design of the MBL makes it suitable for harsh and hazardous environments using a cast copper-free aluminum. Its low profile and compact design allow the MBL to fit in areas where larger fixtures would not fit while still supplying high quality illumination.
Specifications
Key Specifications
- Country of Origin
- United States
- Hub Size
- 3/4"
- Operating Temperature Celcius Max
- 55
- Operating Temperature Range Celcius
- -40°C to 55°C
- Voltage Rating
- 120-277 VAC
- Application
- MBL LED fixtures are designed for installations where moisture, dirt, dust, corrosion and vibration may be present, or NEMA 3 and 4X areas where wind, water, snow or high ambients can be expected. They can be used in locations made hazardous by the presence of flammable vapors or gases or combustible dusts as defined by the NEC.
- Frequency Rating
- 50/60 Hz
- Wattage
- 22 W
- Class Code
- D20
- Freight Class Code
- 06316009
- Image Actual Or Representative
- A
- Sub Class Code
- D20D202
- Lumens Per Watt
- 73.9
- Material
- Aluminum, Copper Free (less than 4/10 of 1%)
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936091969
Hazardous Rating(s)Class I, Division 2, Groups A, B, C, D;Class I, Zone 2, Groups IIC, IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
Lumens1365
Operating Temperature Celcius Min-40 °C
Optic TypeGlass Globe - Fluted
Weight14.96 lb.
Finish TypePowder Epoxy Paint
Mounting TypePendant
ARRA CompliantContact Manufacturer
Description - InvoiceMBLED 22W A2 GLOBE & GRD
Harmonization Code9405116020
MSDS FlagNo
Lumen Range0-2,000 lm
Light SourceLED
SeriesMBL Series
BOX SIZE(in)
NAICS Code3351222100
