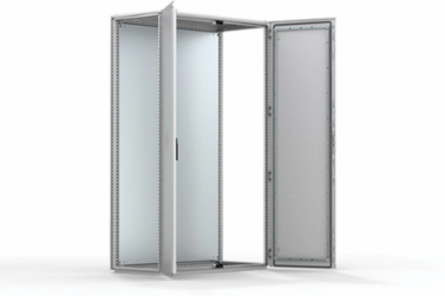

nVent Hoffman MCD20088R5 Modular Double Door Enclosure, 78.74 x 31.5 x 31.5 Inch, Mild Steel, IP 55
nVent Hoffman MCD20088R5 Modular Double Door Enclosure, 78.74 x 31.5 x 31.5 Inch, Mild Steel, IP 55
- MPN: MCD20088R5
- UPC: 783510491215
- PPN: HOF-MCD20088R5
- UNSPSC: 39121334
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
Description
Double-door, combinable, floor-standing enclosure range, MCD, with IP 55/Type 12 rating. This Modular Double Door, MCD with Plate, MCD20088R5 item measures 2000x800x800mm with a material of Mild Steel color Light Gray.
Features
- Material: Frame: 1.5 mm painted steel. Doors: 2 mm painted steel. Rear, roof and side panels: 1.5 mm painted steel. Mounting plate: 3 mm galvanized steel. Bottom plates: 1 mm galvanized steel.
- Frame: Seam welded reversed open profiles with 25 mm hole pattern, according to DIN 43660. Including integrated external hole pattern.
- Doors: Mounted with four hinges. Including door frame with 25 mm hole pattern. Doors cannot be reversed. Separate doors to be ordered for left hand door locking.
- Rear panel: Fitted by M6 torx screws. Standard facilities for rear doors mounting. Split rear panels in 1600 mm wide enclosures. RD version comes with rear door instead of rear panel.
- Side panels: Supplied as an accessory.
- Roof panel: Removable.
- Lock: Espagnolette 4-point locking system in the main door and 2-point locking system in the secondary door. Standard double-bit lock with 3 mm insert. Standard inserts, cylinders, lift handles and T-handles are available as accessories.
- Bottom plates: Consists of three or four (D>600) pieces.
- Mounting plate: Double folded and slides into position. Adjustable in depth by steps of 25 mm, with the MPD02 accessory. Supplied, attached on the outside of the enclosure packaging.
- Earthing: All panels are earthed through their fittings and equipped with a separate earthing stud.
- Finish: RAL 7035 structured powder coating.
- Protection: Complies with IP55 | TYPE 12 | IK 10.
- Mounting requirements: Standard delivery ready for combined installation. For stand-alone installation add side panels.
- Delivery: Frame with fitted doors, rear panel, roof panel, bottom plates, mounting plate and door frame (not included for PER5 version). For enclosures 2200 mm height, delivery includes two CMB profiles mounted in depth. Delivery also includes earthing bolts. Delivered on a pallet which is identical to the width of the enclosure to allow baying without removal. Packing material is recyclable.
Specifications
Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 800
- Mounting Plate Included
- Yes
- Mounting Plate Width
- 694
- Rear Door Included
- Yes
- Protection Rating
- NEMA Type 12
- Color Code
- RAL 7035
- Door Thickness
- 2
- Cable Entry
- No
- Color
- RAL 7035 Light Gray
- Mounting
- Free Standing
Height (H)2,000
Depth (D)800
Mounting Plate Height1,894
Max Mounting Depth759
Rear Panel IncludedNo
FinishPowder Coated
Body Thickness1.5
MaterialMild Steel
Size78.74 x 31.5 x 31.5 inch
ConstructionBody: 16 gauge | Door: 14 gauge
NEMA RatingNEMA Type 12
