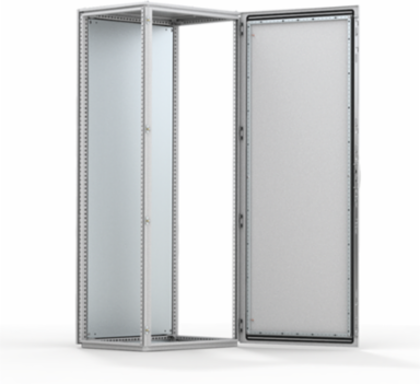

Nvent Hoffman MCS18046R5 Modular Single Door Enclosure 1800x400x600mm Mild Steel NEMA Type 12
Nvent Hoffman MCS18046R5 Modular Single Door Enclosure 1800x400x600mm Mild Steel NEMA Type 12
- MPN: MCS18046R5
- UPC: 783510493929
- PPN: HOF-MCS18046R5
- UNSPSC: 39121334
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$2420.92/ EA
Description
Single-door, combinable, floor-standing enclosure range, MCS, with IP 55/Type 12 rating. This Modular Single Door, MCS without Plate, MCS18046R5 item measures 1800x400x600mm with a material of Mild Steel color Light Gray.
Features
- Material: Frame: 1.5 mm painted steel. Door: 2 mm painted steel. Rear, roof and side panels: 1.5 mm painted steel. Mounting plate: 3 mm galvanized steel. Bottom plates: 1 mm galvanized steel.
- Frame: Seam welded reversed open profiles with 25 mm hole pattern, according to DIN 43660. Including integrated external hole pattern.
- Door: Mounted with four hinges allowing left or right hand opening. Including door frame with 25 mm hole pattern.
- Rear panel: Fitted by M6 torx screws. Standard facilities for rear door mounting. RD version comes with rear door instead of rear panel.
- Side panels: Supplied as an accessory.
- Roof panel: Removable.
- Lock: Espagnolette 4-point locking system. Does not interfere with the enclosure inner space. Standard double-bit lock with 3 mm insert. Standard inserts, cylinders, lift handles and T-handles are available as accessories.
- Bottom plates: Consists of three or four (D>600) pieces.
- Mounting plate: Double folded and slides into position. Adjustable in depth by steps of 25 mm, with the MPD02 accessory. Supplied, attached on the outside of the enclosure packaging.
- Earthing: All panels are earthed through their fittings and are equipped with a separate earthing stud.
- Finish: RAL 7035 structured powder coating.
- Protection: Complies with IP 55 | TYPE 12 | IK 10.
- Mounting requirements: Standard delivery ready for combined installation. For stand-alone installation add side panels.
- Delivery: Frame with fitted door, rear panel, roof panel, bottom plates, mounting plate (not included for PER5 version) and door frame. For 400 mm wide enclosures, a mounting plate, bottom plates and door frame are not included. For enclosures 2200 mm height, delivery includes two CMB profiles mounted in depth. Delivery also includes earthing bolts. Delivered on a pallet which is identical to the width of the enclosure to allow baying without removal. All packing material is recyclable.
Specifications
Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 400
- Mounting Plate Included
- No
- Rear Panel Included
- Yes
- Finish
- Powder Coated
- Body Thickness
- 1.5
- Weight
- 58
- Material
- Mild Steel
- Size
- 70.87 x 15.75 x 23.62 inch
- Construction
- Body: 16 gauge | Door: 14 gauge
- NEMA Rating
- NEMA Type 12
Height (H)1,800
Depth (D)600
Rear Door IncludedNo
Protection RatingNEMA Type 12
Color CodeRAL 7035
Door Thickness2
Cable Enclosures IncludedNo
Cable EntryNo
ColorRAL 7035 Light Gray
MountingFree Standing
