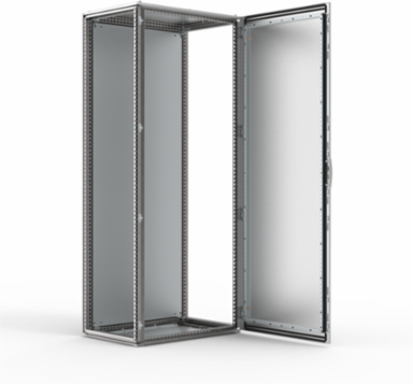

Nvent Hoffman MCSS20086 Modular Single Door Enclosure, 2000 x 800 x 600 mm, Stainless Steel
Nvent Hoffman MCSS20086 Modular Single Door Enclosure, 2000 x 800 x 600 mm, Stainless Steel
- MPN: MCSS20086
- UPC: 783510499662
- PPN: HOF-MCSS20086
- UNSPSC: 39121334
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
Description
Single-door, combinable floor-standing enclosure range, MCSS, with IP 55/Type 12 rating. This Modular Single Door, MCSS, MCSS20086 item measures 2000x800x600mm with a material of Brushed, Stainless, finish Unpainted.
Features
- Material: AISI 304L pre-grained stainless steel / AISI 316L. Frame: 1.5 mm. Door: 2 mm. Rear, roof and side panels: 1.5 mm. Bottom plates: 1.5 mm stainless steel. Mounting plate: 3 mm galvanized steel.
- Frame: Seam welded reversed open profiles with 25 mm hole pattern, according to DIN 43660.
- Door: Mounted with four hinges allowing left or right hand opening. Including door frame with 25 mm hole pattern.
- Rear panel: Fitted by M6 torx screws. Standard facilities for rear door mounting.
- Side panels: Supplied as an accessory.
- Roof panel: Removable.
- Lock: Espagnolette 4-point locking system. Does not interfere with the enclosure inner space. Standard double-bit 3 mm insert. Standard inserts, cylinders, lift handles and T-handle are available as accessories.
- Bottom plates: One piece bottom plate, with injected polyurethane gasket to ensure maximum sealing.
- Mounting plate: Double folded and slides into position. Adjustable in depth by steps of 25 mm, with the MPD02 accessory. Mounting plate is supplied, attached on the outside of the enclosure packaging.
- Earthing: All panels are earthed through their fittings and are equipped with a separate earthing stud.
- Finish: 400 pre-grained stainless steel.
- Protection: Corresponds with IP 55 | TYPE 12 | IK 10.
- Mounting requirements: Standard delivery ready for combined installation. For stand-alone installation, add side panels.
- Delivery: Frame with fitted door, rear panel, roof panel, bottom plate, mounting plate and door frame. Delivery also includes earthing bolts. Delivered on a pallet which is identical to the width of the enclosure to allow baying without removal. All packing material is recyclable.
Specifications
Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 800
- Protection Rating
- NEMA Type 12
- Body Thickness
- 1.5
- Weight
- 144.5
- Cable Entry
- No
- Color
- Unpainted
- Mounting
- Free Standing
Height (H)2,000
Depth (D)600
FinishBrushed
Door Thickness2
MaterialStainless Steel
Size78.74 x 31.5 x 23.62 inch
ConstructionBody: 16 gauge | Door: 14 gauge
NEMA RatingNEMA Type 12
