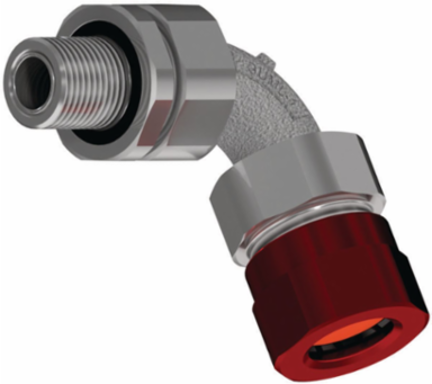

Killark MCX19C Aluminum Cable Connector 1/2 Inch NPT 90 Degree, Cable Range 0.60 - 0.82 Inch
- MPN: MCX19C
- UPC: 783936154169
- PPN: HBL-MCX19C
CAD
$351.32
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
MCX Series - Aluminum Cable Connector 1/2" NPT Barrier 90°
Features
- 360° armor grounding spring is reusable
- Provides a barrier seal between the individual insulated cores within the cable
- Assembly of the cable gland compresses and distributes the compound evenly to create a barrier seal at the point of entry into the enclosure
- Provides a cable retention and low smoke fume, zero halogen seal onto the cables outer sheath
- Copper free aluminum construction for harsh corrosive and hazardous areas
- Patent pending combination union elbow that allows proper 360° alignment where space is limited
- Compact 45° bend for optimized wiring configurations
- Armor is terminated prior to bend allowing for minimal bending radius
- Backnut is anodized RED to indicate Hazardous area product
- MCX aluminum cable connector series is designed for use with jacketed interlock, continuously corrugated and welded armor cable where it is essential to prevent explosive vapors from passing through electrical devices. This series provides a 45 and 90 degree bend for the most compact space. It is rated for indoor and outdoor use.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Hub Size
- 1/2"
- Style
- 90 Degree
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- MC FITTING AL 1/2" NPT BARRIER 90 DEG
- Harmonization Code
- 7616995190
- MSDS Flag
- Yes
- Sub Class Code
- D30D238
- Material
- Aluminum, Copper Free (less than 4/10 of 1%)
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936154169
Hazardous Rating(s)Class I, Divisions 1 & 2, Groups A, B, C, D;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2;Class I, Zones 1 & 2, Groups IIC, IIB, IIA;Zone 20
Nema Rating3, 4, 4X
TypeCable Gland
Class CodeD30
Freight Class Code06316009
Image Actual Or RepresentativeR
Order Multiple1 EA
Cable Range.60 - .82 in
SeriesMCX Series
BOX SIZE(in)
NAICS Code3359323108
