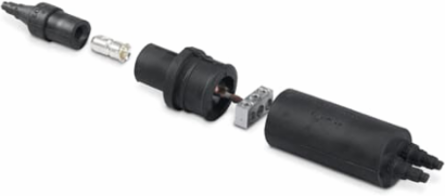

Homac DYU 2 MECH FUSE/DISC KIT Y LINE 4-2 CU
Homac DYU 2 MECH FUSE/DISC KIT Y LINE 4-2 CU
- MPN: DYU 2
- UPC: 783786717750
- PPN: T-B-DYU 2
- UNSPSC: 39121421
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$196.89/ EA
Description
Flood-Seal Street and Highway Lighting Mechanical Fuse and Disconnect Kits - Y Line mechanical run Compression Kits, non-fused, conductor range main 14-2 tap 4-2
Specifications
Additional Information
- Application
- Rated 600V, 30 Amps Maximum, perfect for heavy-duty applications.
- Color
- Black
- Current Rating
- 30 A
- Environmental Conditions
- Watertight
- Insulation Material
- Yes
- Number of Conductors
- 3
- Product Type
- Break-Away Streetlight Kits
Brand / LabelHomac
Connection TypeMechanical
Effective Date20080619
IncludesFlood Seal Housing, Fuse Clips, Connecting Link, Two Aluminum or Copper Lugs, Hardware, Silicone Lubricant and Instruction Sheet.
MaterialAluminum and Copper, EPDM Rubber Housing
Product NameELECTRICAL SPLICE<1000V
Special FunctionsEPDM Flood-Seal Housing ensures a fully insulated, watertight, and submersible connection. Beakaway design separates under tension so wires don't break. Safe separations to ensure fuse or connecting link stays in load side when separated. Re-Enteralbe to enable sectionalizing. Matching Ampacit Rating - run or feeder lugs have the same ampacity rating as the cable, up to 2/0. Y-Ype Mechanical Run Compression Taps use a 1/8 nich Hex wrench for easy Installation.
Classifications
- WEEE Category
- Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)4586 >> Electrical connector assembly
Ordering
- Country of Origin
- United States (US)
Selling Unit of Measureeach
