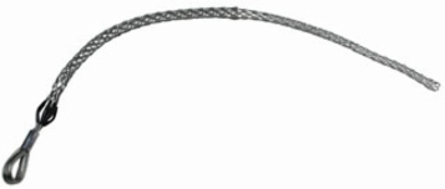

Pass & Seymour PM1002 Medium Duty Flexible Eye T-Type Pulling Grip, 1 Inch Cable Dia, 36 Inch Mesh Length
Pass & Seymour PM1002 Medium Duty Flexible Eye T-Type Pulling Grip, 1 Inch Cable Dia, 36 Inch Mesh Length
- MPN: PM1002
- UPC: 785007185621
- PPN: P-S-PM1002
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$147.74/ EA
Description
Medium Duty, Standard Length, Flexible Eye, T-Type. Cable Diameter - 1.000-1.490-inch, Mesh Length - 36-inch, Eye Diameter - 5/16-inch, Break Strength - 9,600 lbs.
Features
- Medium-duty pulling grips are ideal for overhead and underground pulling applications that require additional durability at an economical price.
- Medium-duty pulling grips are hand crafted with single weave strands that graduate to a double weave design for added strength and durability.
- Mesh Length: 36: Eye Diameter: 5/16
Specifications
Specifications
- Country of Origin
- Mexico
- Type
- Pulling Grip
- Indoor/Outdoor
- Both
- Maximum Cable Range
- 1.0 in
- Application Sector
- Industrial
- Approximate Break Strength
- 9600.0 lb
- Standard
- UL/CSA Approval (consult factory)
- Mounting
- Consult the Factory for Mounting Recommendations
Product LinePass & Seymour
Eye StyleFlexible
Mesh Length36.0 in
Minimum Cable Range1.49 in
Cable Diameter Range1.00-1.49 in
CapacityVarious Cable Diameter Ranges
Special FeaturesMedium-duty pulling grips are ideal for overhead and underground pulling applications that require additional durability at an economical price. Medium-duty pulling grips are hand crafted with single weave strands that graduate to a double weave design for added strength and durability.
ConstructionSupport and Strain Relief Grips, Various Types of Pulling
