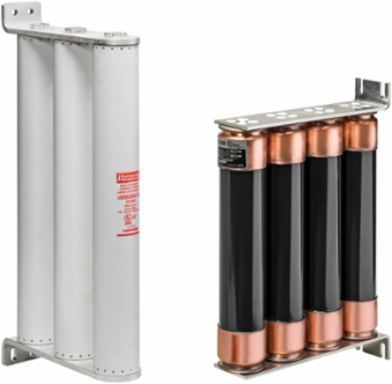

Mersen A155B2D0R0-200E Medium Voltage Fuse 15500V 200A E-Rated Bolt-On Mount 3 Inch
Mersen A155B2D0R0-200E Medium Voltage Fuse 15500V 200A E-Rated Bolt-On Mount 3 Inch
- MPN: A155B2D0R0-200E
- UPC: 782001367442
- PPN: FER-A155B2D0R0-200E
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
Description
Mersen fuses for the protection of transformers and distribution lines deliver overload and short circuit protection. These current-limiting fuses will melt at current that can be as low as 1.7 times the fuse current ratings up to its maximum interrupting rating. These fuses are designed to withstand the transformer magnetizing inrush current. They are single, double, triple or quadruple barrels 3 inch diameter (size D) with end mounts designed for bolting directly to equipment bus or terminal pads.
Specifications
Specifications
- Rated voltage AC UL
- 15500 V
- Ampere Rating
- 200 A
- Speed/Characteristic
- E-Rated
- AC Max I.R./Breaking Capacity: I1
- 50 kA
- Indication System Type
- Visual Indicator
- Connection/Terminal Type
- Bolted
- Width
- 3 in
- Height
- 7.63 in
Frequency (Hz)50/60 Hz
AC or DCAC
MountingBolted
Indication SystemYes
Connection/Terminal MaterialSilver-Plated Copper
Body/Insulating MaterialGMG
Length25.11 in
Weight28 lb
