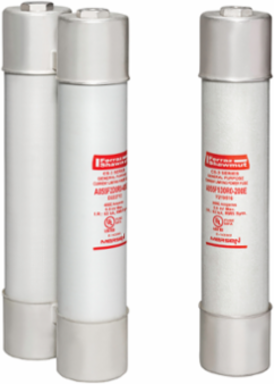

Mersen A155F1D0R0-80E Medium Voltage Fuse 15500V 80A E-Rated, 3 Inch Diameter, Ferrule Mounted
- MPN: A155F1D0R0-80E
- UPC: 782001804640
- PPN: FER-A155F1D0R0-80E
CAD
$3661.47
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Mersen fuses for the protection of transformers and distribution lines deliver overload and short circuit protection. These current-limiting fuses will melt at current that can be as low as 1.7 times the fuse current ratings up to its maximum interrupting rating. These fuses are designed to withstand the transformer magnetizing inrush current. They have 2" (size C), 3" (size D) and 2x3" (size DD) inch diameter barrels with ferrules and are mounted in spring reinforced clips.
Specifications
Key Specifications
- Rated voltage AC UL
- 15500 V
- Ampere Rating
- 80 A
- Speed/Characteristic
- E-Rated
- AC Max I.R./Breaking Capacity: I1
- 50 kA
- Indication System Type
- Visual Indicator
- Connection/Terminal Type
- Ferrule
- Length
- 21.75 in
Frequency (Hz)50/60 Hz
AC or DCAC
MountingClip
Indication SystemYes
Connection/Terminal MaterialSilver-Plated Copper
Body/Insulating MaterialPolyTube
Weight12.45 lb
