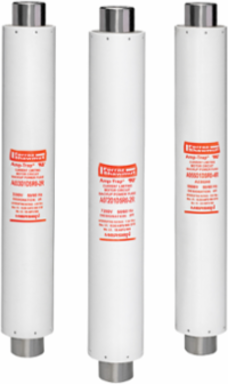

Mersen A072D1DSR0-13R Medium Voltage Fuse 7200V R-Rated DIN 442mm, 2.88 Inch Diameter, 100 kA Capacity
- MPN: A072D1DSR0-13R
- UPC: 782001310462
- PPN: FER-A072D1DSR0-13R
CAD
$3636.63
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Amp-Trap® R-Rated DIN style fuses are current-limiting, high interrupting rating fuses, intended for the short circuit protection of medium voltage motors and motor controllers. This product range offers North American R-Rated performance in the IEC 282-1 DIN mounting configuration of 442mm. R-Rated fuses are applied as back up fuses that have a minimum interrupting rating, and must be coordinated with overload relays in combination motor starters. Amp-Trap R-Rated, DIN type fuses are offered in voltage ratings of 3.3kV, 5.3kV and 7.2kV in ratings from 2R to 19R. All fuses within this product group are UL component recognized.
Specifications
Key Specifications
| Rated voltage AC UL | 7200 V |
|---|---|
| ROHS Compliant | Yes |
| Speed/Characteristic | R-Rated |
| AC Max I.R./Breaking Capacity: I1 | 100 kA |
| Indication System | Yes |
| Connection/Terminal Material | Silver-Plated Brass |
| Body/Insulating Material | GMG |
| Weight | 12.5 lb |
| Frequency (Hz) | 50/60 Hz |
|---|---|
| AC or DC | AC |
| Mounting | Clip |
| Design Details | 13R |
| Indication System Type | Visual Indicator |
| Connection/Terminal Type | Clip |
| Length | 20 in |
