Mersen A083C2D0R0-200E Amp-Trap Medium Voltage Fuse 8250V 200A Clip-Lock Mount

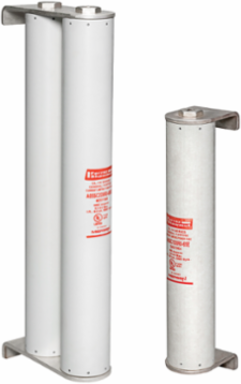

Amp-Trap Medium Voltage Fuse 8250V 200A Clip-Lock Mount
  • MPN: A083C2D0R0-200E
  • UPC: 782001331351
  • PPN: FER-A083C2D0R0-200E

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$4152.06/ EA

Description

Mersen Amp-Trap fuses for the protection of transformers and distribution lines deliver overload and short circuit protection. These general purpose current-limiting fuses will melt at current that can be as low as 1.7 times the fuse current ratings up to its maximum interrupting rating. These fuses are designed to withstand the transformer magnetizing inrush current. They are single, double or triple barrels 3 inch diameter (size D) and mount in unique cam-locking clips for superior connections as well as easy installation and replacement.

Specifications

Specifications

Rated voltage AC UL
8250 V
Ampere Rating
200 A
Speed/Characteristic
E-Rated
AC Max I.R./Breaking Capacity: I1
50 kA
Indication System Type
Visual Indicator
Connection/Terminal Type
Blade
Width
3 in
Height
7.94 in
Frequency (Hz)50/60 Hz
AC or DCAC
MountingClip-lock
Indication SystemYes
Connection/Terminal MaterialSilver-Plated Copper
Body/Insulating MaterialGMG
Length16.95 in
Weight22 lb
