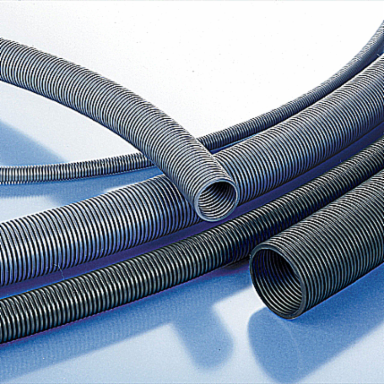

PMA LLPA-12A.215 Medium Wall Conduit
- MPN: LLPA-12A.215
- UPC: 078620999639
- PPN: T-B-LLPA-12A.215
CAD
$968.22
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Fine Profile Medium-Wall Very Flexible Black Conduit, (LLPA) Material - Polyamide 6, Conduit Size NW - 12, 215 Meters
Features
- Good impact resistance also at low temperatures and dry conditions
- Self-extinguishing
- Free from halogens and cadmium
- Good flexibility
- Renewable Energy
- Technology
Specifications
North American Specifications (UNSPSC)
| UNSPSC | 39131706 Electrical conduit |
|---|---|
| Brand Name | PMA |
| Application | Machine |
| Outside Diameter | 0.62 Inch |
| Length | 215 m |
| Material | Polyamide/Nylon 6 |
| IGCC | 5535 Electrical conduit |
|---|---|
| Type | Medium Wall Conduit |
| Trade Size | NW12 |
| Inside Diameter | 0.47 Inch |
| Flexibility | Very Flexible |
| Color | Black |
European Specifications (ETIM)
| ETIM | EC001175 Corrugated plastic hose |
|---|---|
| Outer diameter | 15.8mm |
| Material | Polyamide 6 |
| Operating temperature | -40 - +105°C |
| Colour | Black |
| Bending strength | Flexible |
| Closable (two-part) | N |
| Approved according to DIN EN 61386-23 | Y |
| Approved according to CSA | Y |
| Approved according to Lloyd's Register TA | Y |
| Approved according to DIN 5510 | N |
| Nominal diameter | 16mm |
|---|---|
| Inner diameter | 12mm |
| Compressive strength | 150N |
| UV resistant | Y |
| Sheathing material | Not sheathed |
| Lengthwise slotted | N |
| Halogen free | Y |
| Approved according to UR | Y |
| Approved according to LUL/British Standard | N |
| Approved according to UTAC | N |
| Approved according to NF F 16-101 | N |
Packaging
| Inner Quantity | 1 |
|---|---|
| Outer Dimensions (inches) | 47.244x31.496x30.709 |
| Outer Quantity | 5 |
|---|---|
| Weight Uom | 18.4 lbs. Each |
