Klein Tools 69483 Meter Accessory Extension Kit, 9-Piece
- MPN: 69483
- UPC: 092644694837
- PPN: KLT-69483
- UNSPSC: 41111970
CAD
$75.37
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

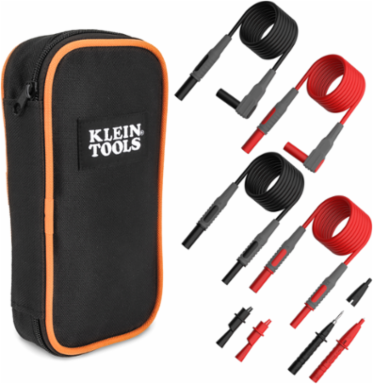

The Klein Tools Meter Accessory Kit includes 3-Foot right-angle lantern-style leads, 3-Foot extension adapters, removable test lead heads, screw-on alligator clips, and carrying case. Designed to be an upgrade or replacement lead kit compatible with clamp meters, multimeters, or other test equipment with standard lead connections.
Features

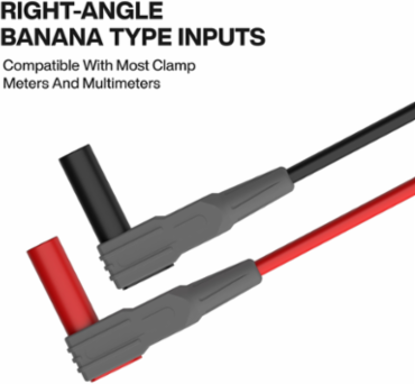

- Standard right-angle lantern style banana type inputs compatible with most clamp meters and multimeters

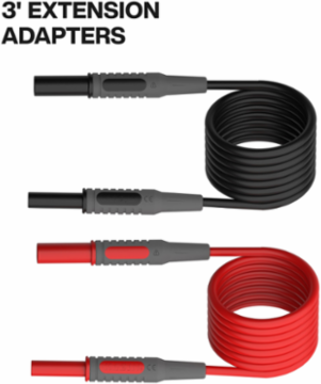

- 3-Foot lead adapter extenders connect to standard banana jacks and lead bases for extended reach and total length; they cannot be used as straight leads and can only connect into lead bases
- Soft carrying case with elastic straps for organizing small lead attachments and designed to fit most meters along with included accessories

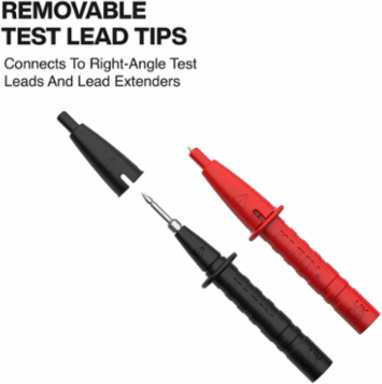

- Removable universal test lead tips connect to base right-angle test leads and lead extenders

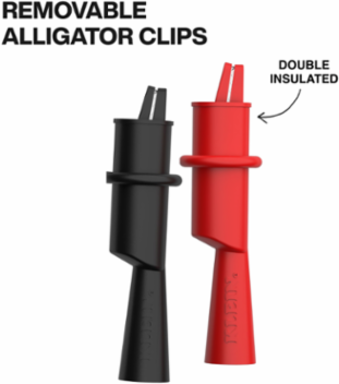

- Threaded removable alligator clips attach to test lead tips to attach to wires and other conductors for testing

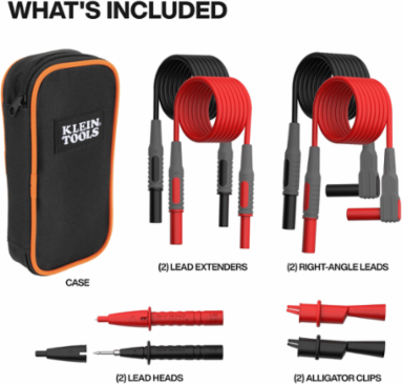

- Includes (2) right-angle leads, (2) lead extenders, (2) lead heads, (2) alligator clips, and case to expand the usage of your multimeter or clamp meter
- Double insulated and CAT III 1000V/CAT IV 600V safety rated
- Belt Loop on Case, Elastic Straps
Documentation & Downloads
Specifications
Key Specifications
| Type | Test Leads, Lead Extension, Alligator Clips |
|---|---|
| Application | For use with Clamp Meters, Multimeters, and Other Test Equipment with Standard Lead Connections |
| Connector Type | Lead Extenders - Male-to-Female Banana Jack; Lead Tips - Female Banana Jack; Right-Angle Lead Bases - Male-to-Male Banana Jack; Alligator Clips - Screw on Caps |
| Overall Length | 8.5 Inch (21.6 cm) |
| Overall Height | 1.5 Inch (3.8 cm) |
| Width | 5.2500 in |
| Weight | 0.6900 lbs |
| Material | PVC, Nickel Plated Brass, PP, Nickel Plated Steel |
|---|---|
| Included | (2) Right-Angle Leads, (2) Lead Extenders, (2) Lead Heads, (2) Alligator Clips, and Case |
| For Use With | Cat. Nos. CL120, CL220, CL320, CL390, CL445, CL490, CL710, CL810, MM320, MM325, MM420, MM450, MM720, ET600, ET250, ET60 |
| Overall Width | 11.4 cm (4.5 Inch) |
| Height | 2.1250 in |
| Depth | 10.2500 in |
