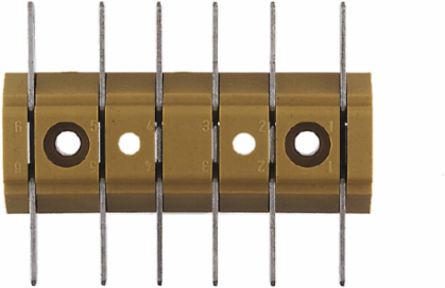

Weidmuller 0479720000 MF Multipin Terminal Strip 4.449 Inch Width, 6 A Current, 2.5 mm2 Rated Cross-section
- MPN: 0479720000
- PPN: WDM-0479720000
CAD
$20.30
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Multipin terminal strip, Single- and multi-pole terminal strip, Rated cross-section: 2.5 mm², Flat-blade connection, Direct mounting
Documentation & Downloads
Specifications
Approvals
| Approvals | CE, CSA, EAC, UR |
|---|---|
| UL File Number Search | E60693 |
| ROHS | Conform |
|---|
Dimensions And Weights
| Width | 113 mm |
|---|---|
| Height | 6,800 mm |
| Depth | 12.5 mm |
| Weight | 20.28 g |
| Width (inches) | 4.449 inch |
|---|---|
| Height (inches) | 267.716 inch |
| Depth (inches) | 0.492 inch |
| Net weight | 20.28 g |
Csa Rating Data
| Certificate No. (CSA) | 12400-221 |
|---|---|
| Current size D (CSA) | 10 A |
| Voltage size D (CSA) | 300 V |
| Current size B (CSA) | 20 A |
|---|---|
| Voltage size B (CSA) | 150 V |
Additional Technical Data
| Explosion-tested version | No |
|---|---|
| Type of mounting | Direct mounting |
| Installation advice | Direct mounting |
|---|
Material Data
| Material | KrG |
|---|---|
| UL 94 flammability rating | 5VA, V-0 |
| Colour | medium yellow |
|---|
Safety Note
| Safety notice | Safety Information |
|---|
Classifications
| ETIM 6.0 | EC001284 |
|---|---|
| eClass 9.0 | 27-14-11-06 |
| eClass 10.0 | 27-14-11-06 |
| ETIM 7.0 | EC001284 |
|---|---|
| eClass 9.1 | 27-14-11-06 |
| UNSPSC | 30-21-18-11 |
System Specifications
| Version | For the mounting rails |
|---|
| End cover plate required | No |
|---|
Temperatures
| Storage temperature, max. | 40 °C |
|---|---|
| Storage temperature | 10 °C...40 °C |
| Continuous operating temp., max. | 130 °C |
| Storage temperature, min. | 10 °C |
|---|---|
| Continuous operating temp., min. | -60 °C |
Rating Data
| Rated cross-section | 2.5 mm² |
|---|---|
| Rated current | 6 A |
| Power loss in accordance with IEC 60947-7-x | 0.77 W |
| Pollution severity | 3 |
| Rated voltage | 400 V |
|---|---|
| Volume resistance according to IEC 60947-7-x | 1.33 mΩ |
| Rated impulse withstand voltage | 6 kV |
Conductors For Clamping (Rated Connection)
| Connection direction | on side |
|---|---|
| Type of connection | Flat-blade connection |
| Wire connection cross-section, finely stranded, min. | 0.5 mm² |
| Wire connection cross-section, solid core, min. | 0.5 mm² |
| Number of connections | 4 |
|---|---|
| Wire connection cross section, finely stranded, max. | 2.5 mm² |
| Wire connection cross-section, solid core, max. | 2.5 mm² |
Ul Rating Data
| Certificate No. (UR) | E60693 |
|---|---|
| Current size D (UR) | 10 A |
| Voltage size D (UR) | 300 V |
| Current size B (UR) | 10 A |
|---|---|
| Voltage size B (UR) | 300 V |
