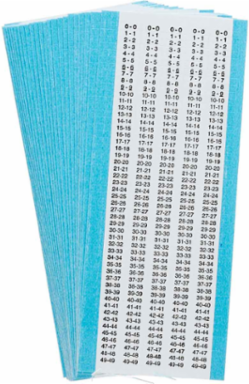

Brady TMXM-0-49-PK Micro Wire Markers - Low-Profile Vinyl-Coated Polyester, Legend 0 to 49
Brady TMXM-0-49-PK Micro Wire Markers - Low-Profile Vinyl-Coated Polyester, Legend 0 to 49
- MPN: TMXM-0-49-PK
- UPC: 662820905578
- PPN: BRD-TMXM-0-49-PK
- UNSPSC: 39131507
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$231.21/ EA
Description
Made of B-702 low profile glossy vinyl-coated polyester, the TMXM series micro markers are resistant to oil, mild solvents and continuous heat to 250° F (121° C)
Features
- Ideal for use in applications that require good resistance to solvents and oils
- Glossy white vinyl topcoat with a high tack rubber-based adhesive features excellent flexibility for wrapping on thin gauge wire
- High adhesion and low profile when wrapped on wires
- Withstands mild chemicals, oil and water
Specifications
Specifications
- Applications
- Component and Equipment Labeling; Wire and Cable Labeling
- Cards or Sheets per Pack
- 25
- Compatible Surface Types
- Low Surface Energy
- Finish
- Gloss
- National Stock Number (NSN)
- 7690010796852
- Printer and Label Applications
- Wire & Cable
- Serialization
- Consecutive Numbers
- Adhesive Type
- High-tack Rubber Based
- Label Properties
- Permanent Adhesive Labels
- Material Properties
- Low Profile
- SAP B-Number
- B-702
- Dimensions (Metric)
- 2.4 mm H
- Height (in/ft/yd)
- 0.094 in
- Maximum Service Temperature °C
- 100 °C
- Minimum Application Temperature °C
- 10 °C
- Minimum Service Temperature °C
- -40 °C
- Sign Size-General
- 0.094 in x 0.313 in
- Thickness (mm/cm/m)
- 0.056 mm
- Width (mm/cm/m)
- 8 mm
Brand NameBrady®
ColorBlack on White
Enables Industry ComplianceASTM D 1000; ASTM D 2979
Label/Media FormatDie-Cut on Cards
Primary Noun, Basic FunctionWire Marker
Quantity per Card or Sheet250
Text Legend0-0 to 49-49
Brady Material NumberB-702
MaterialVinyl
Resistance PropertiesChemical-Resistant; Corrosion-Resistant; Humidity-Resistant; Oil-Resistant; UV-Resistant; Weather-Resistant
Dimensions0.094 in H x 0.313 in W
Dimensions 20.094 in H x 0.313 in W
Height (mm/cm/m)2.4 mm
Maximum Service Temperature °F212 °F
Minimum Application Temperature °F50 °F
Minimum Service Temperature °F-40 °F
Thickness (in/ft/yd)0.0022 in
Width (in/ft/yd)0.313 in
Regulatory Information
- Contains CA PROP 65 Substance
- Yes Contains-Label not req.
- Contains Heavy Metal(s)
- Unavailable
- EU RoHS Compliance
- Pass 2011/65/EU(Pass 2015/863)
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
Contains CA PROP 65 SubstanceNo
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantYes
