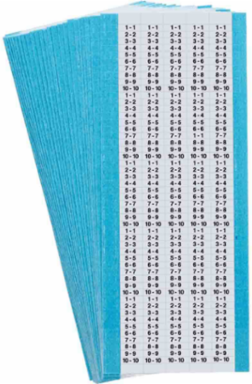

Brady TMXM-1-10-PK Micro Wire Markers - Low-Profile Vinyl-Coated Polyester, Legend 1 to 10
- MPN: TMXM-1-10-PK
- UPC: 662820905615
- PPN: BRD-TMXM-1-10-PK
- UNSPSC: 39131507
CAD
$216.99
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Made of B-702 low profile glossy vinyl-coated polyester, the TMXM series micro markers are resistant to oil, mild solvents and continuous heat to 250° F (121° C)
Features
- Ideal for use in applications that require good resistance to solvents and oils
- Glossy white vinyl topcoat with a high tack rubber-based adhesive features excellent flexibility for wrapping on thin gauge wire
- High adhesion and low profile when wrapped on wires
- Withstands mild chemicals, oil and water
Documentation & Downloads
Specifications
Key Specifications
- Applications
- Component and Equipment Labeling; Wire and Cable Labeling
- Cards or Sheets per Pack
- 25
- Compatible Surface Types
- Low Surface Energy
- Finish
- Gloss
- Primary Noun, Basic Function
- Wire Marker
- Quantity per Card or Sheet
- 25
- Text Legend
- 1-1 to 10-10
- Brady Material Number
- B-702
- Material
- Vinyl
- Resistance Properties
- Chemical-Resistant; Corrosion-Resistant; Humidity-Resistant; Oil-Resistant; UV-Resistant; Weather-Resistant
- Dimensions
- 0.094 in H x 0.313 in W
- Dimensions 2
- 0.094 in H x 0.313 in W
- Height (mm/cm/m)
- 2.4 mm
- Maximum Service Temperature °F
- 212 °F
- Minimum Application Temperature °F
- 50 °F
- Minimum Service Temperature °F
- -40 °F
- Thickness (in/ft/yd)
- 0.0022 in
- Width (in/ft/yd)
- 0.313 in
Brand NameBrady®
ColorBlack on White
Enables Industry ComplianceASTM D 1000; ASTM D 2979
Label/Media FormatDie-Cut on Cards
Printer and Label ApplicationsWire & Cable
SerializationConsecutive Numbers
Adhesive TypeHigh-tack Rubber Based
Label PropertiesPermanent Adhesive Labels
Material PropertiesLow Profile
SAP B-NumberB-702
Dimensions (Metric)2.4 mm H
Height (in/ft/yd)0.094 in
Maximum Service Temperature °C100 °C
Minimum Application Temperature °C10 °C
Minimum Service Temperature °C-40 °C
Sign Size-General0.094 in x 0.313 in
Thickness (mm/cm/m)0.056 mm
Width (mm/cm/m)8 mm
Regulatory Information
- Contains CA PROP 65 Substance
- Yes Contains-Label not req.
- Contains Heavy Metal(s)
- Unavailable
- EU RoHS Compliance
- Pass 2011/65/EU(Pass 2015/863)
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
Contains CA PROP 65 SubstanceNo
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantYes
