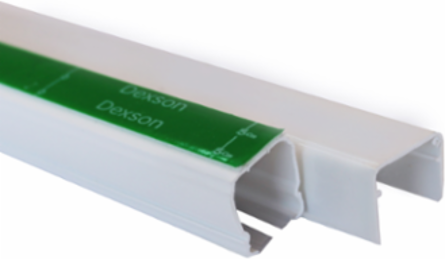

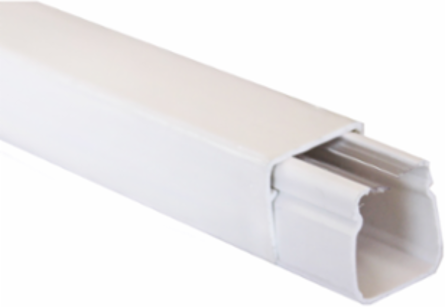

Schneider Electric DXN10071E Mini Trunking 20x20 mm 1 Compartment Adhesive PVC White IP40

Mini Trunking 20x20 mm 1 Compartment Adhesive PVC White IP40 - https://media.province-electric.com/schneider_synd_rework/2024q1/images/medium/e0ca106c2cfd3342e7e828daa6dbd30e6b441fe7-medium.png

Mini Trunking 20x20 mm 1 Compartment Adhesive PVC White IP40

MPN: DXN10071E
PPN: SCH-DXN10071E

Spec sheet

In Stock

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$10.69/ EA

Qty:

Loading add to cart quantity...

Description

The Schneider Electric DXN10071E Mini Trunking offers robust and efficient cable management solutions with its compact 20x20 mm design. Crafted from high-quality adhesive PVC in a clean white finish, this single-compartment trunking ensures not only a neat appearance but also reliable protection for your wiring. Rated IP40, it provides a moderate level of ingress protection, making it suitable for a variety of indoor applications where durability and accessibility are essential. Ideal for maintaining organized cables, this trunking system enhances both aesthetics and functionality in any setting.

Specifications

Ambient Air Temperature for Operation: -5 to 60 B0C (-5 to 140 B0F)

Length: 2000 mm (78.74 in)

Height: 20 mm (0.79 in)

Fixing Mode: Adhesive, Screw-fixed

Flame Retardance: HB UL 94 V0, self-extinguishing, M1 UNE 23727

IP Degree of Protection: IP40

Environmental Characteristic: Impact resistant, oil resistant, lubricant resistant

Warranty: 5 Years

Device Presentation: with cover

Range: Dexson

Trunking Dimension20 x 20 mm

Width20 mm (0.79 in)

Compartment Partitioning1 compartment

MaterialPVC (polyvinyl chloride)

StandardsEN 50085, UL 1595

IK Degree of ProtectionIK07

ComplianceGreen Premium, REACh free of SVHC, EU RoHS proactive compliance, China RoHS

ColorWhite RAL 9003

Product or Component Typemini trunking
