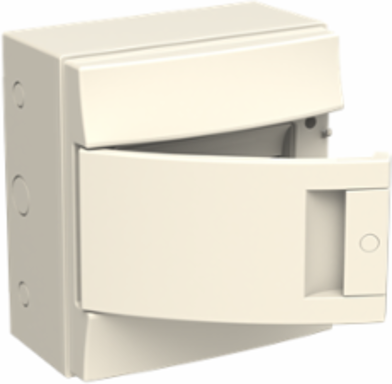

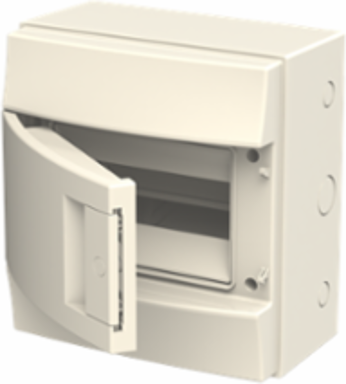

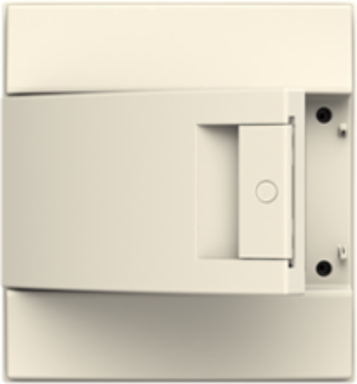

ABB 1SL1101A00 65P08X11 Consumer Unit (empty)
- MPN: 1SL1101A00
- UPC: 888614676190
- PPN: ABB-1SL1101A00
CAD
$80.80
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
MISTRAL65 Opaque door 8M;MISTRAL65 Opaque door 8M
Specifications
Additional
| Power Loss | 20 W |
|---|---|
| Protection Class | Isolated (Class II) |
| Product Net Width | 232 mm |
| Product Net Depth / Length | 250 mm |
| DIN Place Units | 8 |
| Number of Line Terminals | 0 |
| Enclosure Material | Thermoplastic |
| Cover Plate Type | Door |
| Cover Style | With Notch |
| REACH Declaration | 9AKK108467A3199 |
| RoHS Status | Following EU Directive 2011/65/EU and Amendment 2015/863 |
| Environmental Information | 1SLC801013D0201 |
| ETIM 9 | EC000214 - Small distribution board |
| Product Net Weight | 1.07 kg |
| Degree of Protection | IP65 |
|---|---|
| Mounting Type | Surface mounted (plaster) |
| Product Net Height | 155 mm |
| Width in Number of Modular Spacings | 8 |
| Number of Rows | 1 |
| Housing Material | Plastic |
| Color | Grey (RAL 7035 - Light Grey) |
| Door Type | Single |
| Transparent Door | No |
| RoHS Information | 9AKK108468A2427 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| eClass | V11.0 : 27142409 |
| Object Classification Code | U |
