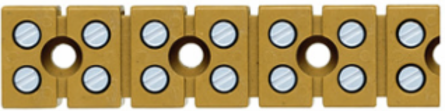

Weidmuller 0274320000 MK 3/7 Multipin Terminal Strip 14 Connections, 2.5 mm² Rated Cross-Section, 400 V
Weidmuller 0274320000 MK 3/7 Multipin Terminal Strip 14 Connections, 2.5 mm² Rated Cross-Section, 400 V
- MPN: 0274320000
- PPN: WDM-0274320000
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$19.49/ EA
Description
Multipin terminal strip, Single- and multi-pole terminal strip, Rated cross-section: 2.5 mm², Screw connection, Direct mounting
Specifications
Approvals
- Approvals
- CE, CSA, CURUSEX, EAC, KEMAKEUR, UR
- UL File Number Search
- E60693
ROHSConform
Dimensions And Weights
- Width
- 63.5 mm
- Height
- 15 mm
- Depth
- 16.1 mm
- Weight
- 25.16 g
Width (inches)2.5 inch
Height (inches)0.591 inch
Depth (inches)0.634 inch
Net weight25.7 g
Dimensions
- Fixing dimension
- 18.5 mm
Csa Rating Data
- Certificate No. (CSA)
- 12400-149
- Voltage size C (CSA)
- 300 V
- Wire cross section min. (CSA)
- 22 AWG
Current size C (CSA)25 A
Wire cross section max. (CSA)12 AWG
Additional Technical Data
- Explosion-tested version
- No
- Type of mounting
- Direct mounting
Installation adviceDirect mounting
Material Data
- Material
- KrG
- UL 94 flammability rating
- 5VA
Colourmedium yellow
Safety Note
- Safety notice
- Safety Information
Classifications
- ETIM 6.0
- EC001284
- eClass 9.0
- 27-14-11-06
- eClass 10.0
- 27-14-11-06
ETIM 7.0EC001284
eClass 9.127-14-11-06
UNSPSC30-21-18-11
System Specifications
- Version
- For the mounting rails
End cover plate requiredNo
Temperatures
- Storage temperature, max.
- 40 °C
- Storage temperature
- 10 °C...40 °C
- Continuous operating temp., max.
- 130 °C
Storage temperature, min.10 °C
Continuous operating temp., min.-60 °C
Rating Data
- Rated cross-section
- 2.5 mm²
- Rated current
- 24 A
- Standards
- IEC 60947-7-1
- Power loss in accordance with IEC 60947-7-x
- 0.77 W
- Pollution severity
- 3
Rated voltage400 V
Current at maximum wires24 A
Volume resistance according to IEC 60947-7-x1.33 mΩ
Rated impulse withstand voltage6 kV
Conductors For Clamping (Rated Connection)
- Blade size
- 0.6 x 3.5 mm
- Clamping range, min.
- 0.33 mm²
- Connection cross-section, stranded, max.
- 2.5 mm²
- Connection direction
- on side
- Number of connections
- 14
- Tightening torque, max.
- 0.45 Nm
- Torque level with DMS electric screwdriver
- 1
- Wire connection cross section AWG, max.
- AWG 12
- Wire connection cross section, finely stranded, max.
- 2.5 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
- 0.5 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
- 0.5 mm²
- Wire connection cross-section, solid core, max.
- 4 mm²
Clamping range, max.4 mm²
Clamping screwM 2.5
Connection cross-section, stranded, min.1.5 mm²
Gauge to IEC 60947-1A2
Stripping length5 mm
Tightening torque, min.0.4 Nm
Type of connectionScrew connection
Wire connection cross section AWG, min.AWG 22
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.1.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.1.5 mm²
Wire connection cross-section, finely stranded, min.0.5 mm²
Wire connection cross-section, solid core, min.0.5 mm²
Ul Rating Data
- Certificate No. (UR)
- E60693
- Conductor size Factory wiring min. (UR)
- 22 AWG
- Conductor size Field wiring min. (UR)
- 22 AWG
- Current size D (UR)
- 5 A
- Voltage size D (UR)
- 600 V
Conductor size Factory wiring max. (UR)12 AWG
Conductor size Field wiring max. (UR)12 AWG
Current size B (UR)20 A
Voltage size B (UR)300 V
