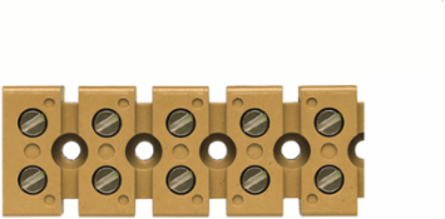

Weidmuller 7906250000 Multipin Terminal Strip 10 Connections, Rated Cross-Section 6 mm2
- MPN: 7906250000
- PPN: WDM-7906250000
CAD
$25.82
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Multipin terminal strip, Single- and multi-pole terminal strip, Rated cross-section: 6 mm², Screw connection, Direct mounting
Documentation & Downloads
Specifications
Approvals
| Approvals | EAC, IECEXTUR, TUEVNATEX, UR |
|---|---|
| UL File Number Search | E60693 |
| ROHS | Conform |
|---|
Dimensions And Weights
| Width | 23 mm |
|---|---|
| Height | 6,250 mm |
| Depth | 22 mm |
| Net weight | 55.75 g |
| Width (inches) | 0.906 inch |
|---|---|
| Height (inches) | 246.062 inch |
| Depth (inches) | 0.866 inch |
Additional Technical Data
| Explosion-tested version | No |
|---|---|
| Type of mounting | Direct mounting |
| Installation advice | Direct mounting |
|---|
Material Data
| Material | KrG |
|---|---|
| UL 94 flammability rating | 5VA |
| Colour | medium yellow |
|---|
Safety Note
| Safety notice | Safety Information |
|---|
Classifications
| ETIM 6.0 | EC001284 |
|---|---|
| eClass 9.0 | 27-14-11-06 |
| eClass 10.0 | 27-14-11-06 |
| ETIM 7.0 | EC001284 |
|---|---|
| eClass 9.1 | 27-14-11-06 |
| UNSPSC | 30-21-18-11 |
System Specifications
| Version | For the mounting rails |
|---|
| End cover plate required | No |
|---|
Temperatures
| Operating temperature range | For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity |
|---|---|
| Storage temperature, min. | 10 °C |
| Continuous operating temp., min. | -60 °C |
| Storage temperature, max. | 40 °C |
|---|---|
| Storage temperature | 10 °C...40 °C |
| Continuous operating temp., max. | 130 °C |
Rating Data
| Rated cross-section | 6 mm² |
|---|---|
| Rated current | 41 A |
| Standards | IEC 60947-7-1 |
| Power loss in accordance with IEC 60947-7-x | 1.31 W |
| Pollution severity | 3 |
| Rated voltage | 690 V |
|---|---|
| Current at maximum wires | 41 A |
| Volume resistance according to IEC 60947-7-x | 0.78 mΩ |
| Rated impulse withstand voltage | 8 kV |
Rating Data Iecex/Atex
| Certificate No. (ATEX) | TUEV18ATEX8209U |
|---|---|
| Max. voltage (ATEX) | 440 V |
| Wire cross section max. (ATEX) | 6 mm² |
| Current (IECEX) | 36 A |
| Operating temperature range | For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity |
| Ex 2014/34/EU label | II 2 G D |
| Certificate No. (IECEX) | IECEXTUR18.0019U |
|---|---|
| Current (ATEX) | 36 A |
| Max. voltage (IECEX) | 440 V |
| Wire cross section max. (IECEX) | 6 mm² |
| Marking EN 60079-7 | Ex eb II C Gb |
Conductors For Clamping (Rated Connection)
| Blade size | 4.0 x 0.8 mm |
|---|---|
| Clamping range, min. | 0.33 mm² |
| Connection cross-section, stranded, max. | 6 mm² |
| Connection direction | on side |
| Number of connections | 10 |
| Tightening torque, max. | 1.2 Nm |
| Torque level with DMS electric screwdriver | 4 |
| Wire connection cross section AWG, max. | AWG 10 |
| Wire connection cross section, finely stranded, max. | 6 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min. | 0.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min. | 0.5 mm² |
| Wire connection cross-section, solid core, max. | 6 mm² |
| Clamping range, max. | 6 mm² |
|---|---|
| Clamping screw | M 4 |
| Connection cross-section, stranded, min. | 1.5 mm² |
| Gauge to IEC 60947-1 | A3 |
| Stripping length | 9 mm |
| Tightening torque, min. | 1.2 Nm |
| Type of connection | Screw connection |
| Wire connection cross section AWG, min. | AWG 22 |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max. | 4 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max. | 4 mm² |
| Wire connection cross-section, finely stranded, min. | 0.5 mm² |
| Wire connection cross-section, solid core, min. | 0.5 mm² |
Ul Rating Data
| Certificate No. (UR) | E60693 |
|---|---|
| Conductor size Factory wiring min. (UR) | 22 AWG |
| Conductor size Field wiring min. (UR) | 22 AWG |
| Current size C (UR) | 30 A |
| Voltage size C (UR) | 300 V |
| Conductor size Factory wiring max. (UR) | 10 AWG |
|---|---|
| Conductor size Field wiring max. (UR) | 10 AWG |
| Current size B (UR) | 30 A |
| Voltage size B (UR) | 300 V |
