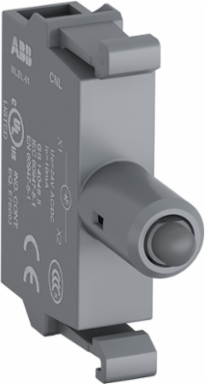

ABB MLBL-00L MLBL-00L LED block
- MPN: MLBL-00L
- UPC: 804325418706
- PPN: ABB-MLBL-00L
- UNSPSC: 39122221
CAD
$78.78
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The MLBL-00L LED block is: - Blue - Illuminated - Front mounting - 12 V
Specifications
Dimensions
| Product Net Width | 0.01 m |
|---|---|
| Product Net Depth / Length | 0.042 m |
| Product Net Height | 0.044 m |
|---|---|
| Product Net Weight | 0.01 kg |
Technical
| Ambient Air Temperature | Operation -25 ... +70 °CStorage -40 ... +85 °C |
|---|---|
| Illumination | Illuminated |
| Mounting Type | Front mounting |
| Rated Operational Voltage | 12 V DC |
| Connection Type | Screw Clamp |
| Tightening Torque | 0.9 N·m |
| Suitable For | MCBH-00MCBH5-00MP1MP2MP3MP4MPMT3MPMP3M2SS1M2SS2M2SS3M2SS4M2SS5M2SS6M3SS1M3SS2M3SS3M3SS4M3SS5M3SS6M3SS7M3SS8MPM1 |
| Color | Blue |
|---|---|
| Lamp Type | 12V DC, integrated LED |
| Degree of Protection | Terminals IP20 |
| Connecting Capacity | Flexible with Ferrule 1 x 0.75...2.5 mm²Flexible with Ferrule 2 x 0.75...2.5 mm²Flexible with Insulated Ferrule 1 x 0.75...2.5 mm²Flexible with Insulated Ferrule 2 x 0.75...2.5 mm²Flexible 1 x 0.75 ... 2.5 mm²Flexible 2 x 0.75 ... 2.5 mm²Solid 1 x 0.75...2.5 mm²Solid 2 x 0.75...2.5 mm² |
| Terminal Type | Screw Terminals |
| Wire Stripping Length | 8 mm |
| Suitable for Product Class | Pilot Devices |
Classifications
| Object Classification Code | E |
|---|---|
| IDEA Granular Category Code (IGCC) | 5219 >> Switch part or accessory |
| E-Number (Sweden) | 3705608 |
| eClass | V11.0 : 27371209 |
|---|---|
| E-Number (Finland) | 2315743 |
Environmental
| RoHS Status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
|---|---|
| RoHS Information | 2CMT2015-005452 |
| WEEE B2C / B2B | Business To Business |
| RoHS Date | 0635 4 |
|---|---|
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
Technical UL/CSA
| Connecting Capacity UL/CSA | 1x 18...14 AWG2x 18...14 AWG |
|---|
Ordering
| Minimum Order Quantity | 10 piece |
|---|
| Customs Tariff Number | 85369001 |
|---|
