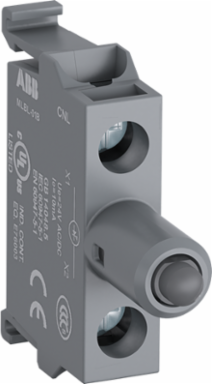

ABB MLBL-05BG MLBL-05BG LED block
ABB MLBL-05BG MLBL-05BG LED block
- MPN: MLBL-05BG
- PPN: ABB-MLBL-05BG
- UNSPSC: 39122221
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$78.78/ EA
Description
The MLBL-05BG LED block is: - Green - Illuminated - Rear mounting - 110 ... 130 V DC
Specifications
Dimensions
- Product Net Width
- 0.01 m
- Product Net Depth / Length
- 0.042 m
Product Net Height0.044 m
Product Net Weight0.01 kg
Technical
- Ambient Air Temperature
- Operation -25 ... +70 °CStorage -40 ... +85 °C
- Illumination
- Illuminated
- Mounting Type
- Rear mounting
- Rated Operational Voltage
- 110 ... 130 V DC
- Connection Type
- Screw Clamp
- Tightening Torque
- 0.9 N·m
- Suitable For
- MCBH-00MCBH5-00MP1MP2MP3MP4MPMT3MPMP3M2SS1M2SS2M2SS3M2SS4M2SS5M2SS6M3SS1M3SS2M3SS3M3SS4M3SS5M3SS6M3SS7M3SS8MPM1
ColorGreen
Lamp Type110-130 V DC, integrated LED
Degree of ProtectionTerminals IP20
Connecting CapacityFlexible with Ferrule 1 x 0.75...2.5 mm²Flexible with Ferrule 2 x 0.75...2.5 mm²Flexible with Insulated Ferrule 1 x 0.75...2.5 mm²Flexible with Insulated Ferrule 2 x 0.75...2.5 mm²Flexible 1 x 0.75 ... 2.5 mm²Flexible 2 x 0.75 ... 2.5 mm²Solid 1 x 0.75...2.5 mm²Solid 2 x 0.75...2.5 mm²
Terminal TypeScrew Terminals
Wire Stripping Length8 mm
Suitable for Product ClassPilot Devices
Classifications
- Object Classification Code
- E
- IDEA Granular Category Code (IGCC)
- 5219 >> Switch part or accessory
- E-Number (Sweden)
- 3705669
eClassV11.0 : 27371209
E-Number (Finland)2315816
Environmental
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- RoHS Information
- 2CMT2015-005452
- WEEE B2C / B2B
- Business To Business
RoHS Date0635 4
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
Technical UL/CSA
- Connecting Capacity UL/CSA
- 1x 18...14 AWG2x 18...14 AWG
Ordering
- Minimum Order Quantity
- 10 piece
Customs Tariff Number85369001
