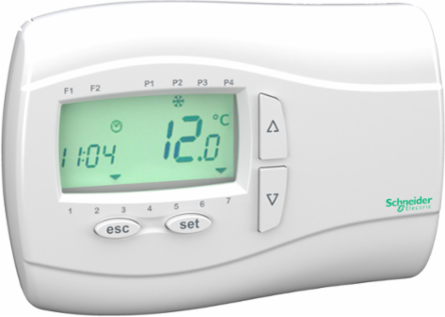

Schneider Electric TM171DWAL2U Modicon M171 Wall Thermostat LCD Screen 137mm x 96.5mm, IP40
- MPN: TM171DWAL2U
- PPN: SCH-TM171DWAL2U
- UNSPSC: 32151703
CAD
$101.45
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This wall thermostat from Schneider Electric is designed for efficient temperature regulation in automation and control applications. Featuring a clear LCD screen, it provides real-time temperature readings and user-friendly interaction, making it ideal for monitoring environments with precision. Its compact dimensions ensure it fits well in any installation, while the IP40 rating guarantees reliable protection against dust and solid objects. With this device, users can expect enhanced control over their systems, ensuring optimal performance and comfort in various settings.
Features
- Modicon M171/M172/M173 logic controllers help to maximize profitability/energy efficiency
- Reduce time to market thanks to the intuitive programming software EcoStruxure Machine Expert - HVAC
- All of the features and functions you need to design and build machines more profitably are already embedded
- Application Function Blocks reduce energy consumption and help to improve system efficiency
- Stay connected everywhere with multiple BMS connectivity and web server embedded
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Italy |
|---|
| Depth | 31.3 mm |
|---|
Physical Attributes
| Color | White |
|---|
Complementary Attributes
| Us Rated Supply Voltage | 12 V DC |
|---|
Important Information Attributes
| Power Consumption In W | 5 W, 0 W |
|---|---|
| Local Publishable Date | 2026-01-12 |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1929 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Kit Identifier | N |
| Local Signalling | LCD display |
| Number Of Key | 4 |
| Product Or Component Type | display module |
| Realtime Clock | with |
| Supply | external source |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Height Nominal | 137 mm |
| Certificate Agency | cURus |
| Warranty In Months | 18 |
| Local Data Status | Publishable |
|---|---|
| Return Indicator | N |
| Weee Product Category | 5 |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Product Contributes To Saved And Avoided Emissions | No |
| Display Type | LCD screen |
| Marking | CE |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Range Of Product | Modicon M171 |
| Returnability | No |
| Sustainable Packaging | Yes |
| Display Color | monochrome |
| Width Nominal | 96.5 mm |
| Nbr. Of Units In Pkg. | 1 |
Environment Attributes Main
| Take Back | No |
|---|---|
| China Rohs Regulation | X |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Recycled Metal Content At Cr Level | 0 % |
|---|---|
| Mercury Free | Yes |
| Ip Degree Of Protection | IP40 front face: |
| Product Compatibility | logic controller M171 optimized |
General Attributes
| Product Or Component Type | display module |
|---|
| Range Of Product | Modicon M171 |
|---|
ETIM
| ETIM 8 | EC001412 |
|---|---|
| ETIM 10 | EC001412 |
| ETIM 9 | EC001412 |
|---|
