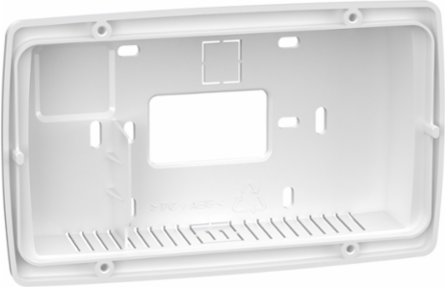

Schneider Electric TM171ABKPB Modicon M171 Performance White wall support display
- MPN: TM171ABKPB
- PPN: SCH-TM171ABKPB
CAD
$8.63
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This wall support display is part of the Modicon M171/M172/M173 range, a control offer for HVAC/Pumping applications. This Mounting accessory is for supporting a remote display. The fixing mode is done by screw. It allows mounting the remote displays dedicated to M171 performance controllers. It is white plastic. It measures 160mm wide, 30mm deep, 96mm high, and weighs 0.015kg. It conforms to UL 94 standards. It is compatible with M171 Performance flush-mount logic controllers. It is sold in a 1-piece package. It is designed for flush mounting with a wall bracket accessory. Modicon M171/M172/M173 controllers are designed for complete automation solutions for HVAC and Pumping machines. Modicon M171/M172/M173 range is for OEMs and helps to maximize profitability or energy efficiency in HVAC applications.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Italy, Sweden
Depth30 mm
Physical Attributes
- Color
- White
Important Information Attributes
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Weee Product Category
- 5
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- No
- Product Kit Identifier
- N
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Product Specific Application
- wall mounting support
- Returnability
- No
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Accessory Separate Part Destination
- remote display
- Warranty In Months
- 18
- Width Nominal
- 160 mm
Local Publishable Date2026-01-12
Stocking FlagY
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1929
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Fixing Modeby screws
Product Or Component Typemounting support
Range Of ProductModicon M171/M172
Sustainable PackagingNo
Accessory Separate Part Categorymounting accessory
Accessory Separate Part Typemounting support
Height Nominal96 mm
Environment Attributes Main
- Take Back
- No
- China Rohs Regulation
- X
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Packaging Made With Recycled CardboardYes
Product Compatibilitylogic controller M171 performance flush mounting
General Attributes
- Product Or Component Type
- mounting support
Range Of ProductModicon M171/M172
ETIM
- ETIM 8
- EC002584
ETIM 9EC002584
