Dragon Tooth 204MT38 Modular Connectors
- MPN: 204MT38
- UPC: 786210839288
- PPN: T-B-204MT38
CAD
$5.56
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

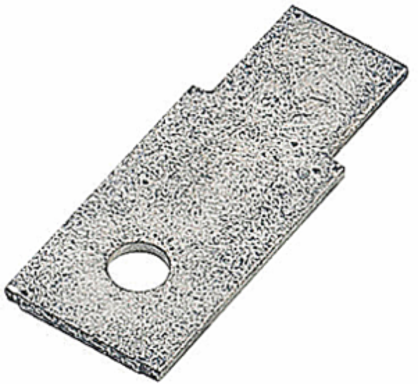

Insulation Piercing Magnet Wire Modular Connector Tongue, Tongue Length 1.44 Inches, Width .91 Inches, Thickness .10 Inches, Stud Size 3/8 Inch, Wire Range #10 AWG - #3 AWG, Copper Alloy, Tin Plated
Features
- Designed to penetrate magnet wire insulation during application, eliminating the need for stripping, brazing, welding or other methods of joining magnet wire.
- For aluminum to copper, aluminum to aluminum or copper to copper magnet wire connections.
Documentation & Downloads
Specifications
European Specifications (ETIM)
- ETIM
- EC001059 Crimp splices for copper conductor
- Model
- Standard version
- Suitable for solid cores
- N
- Suitable for fine strand conductors
- N
- Suitable for round conductors
- Y
- Material
- Copper
- Insulation
- None
- Type of connection
- End connector
AWG-range10-3
Sleeve formShort
Useful for stranded conductorsN
Suitable for insulated varnishY
Suitable for flat conductorsN
Surface protectionTinned
Voltage rowUp to 600 V
Oil stop/centre barN
North American Specifications (UNSPSC)
- UNSPSC
- 39121432 Electrical terminals
- Brand Name
- Dragon Tooth
- Special Features
- Designed to penetrate magnet wire insulation during application, eliminating the need for stripping, brazing, welding or other methods of joining magnet wire.
- Standard
- UL E9809
IGCC4603 Electrical terminals
TypeModular Connectors
ApplicationFor aluminum to copper, aluminum to aluminum or copper to copper magnet wire connections.
MaterialCopper
Packaging
- Inner Quantity
- 25
- Outer Quantity
- 250
- Weight Uom
- 6.38 lbs. per 100
Inner Dimensions (inches)3.5x3x3
Outer Dimensions (inches)16.79x4.1x8
