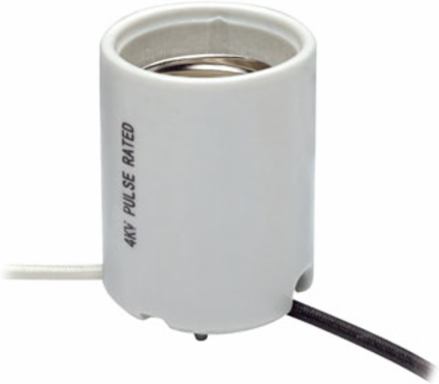

Leviton 8756 Mogul Base, One-Piece, Keyless, HID, Glazed Porcelain Lampholder, HPS up to 400W, Single Circuit, Back Wired, 4KV-Pulse Rated - White

Mogul Base, One-Piece, Keyless, HID, Glazed Porcelain Lampholder, HPS up to 400W, Single Circuit, Back Wired, 4KV-Pulse Rated - White

Leviton 8756 Mogul Base, One-Piece, Keyless, HID, Glazed Porcelain Lampholder, HPS up to 400W, Single Circuit, Back Wired, 4KV-Pulse Rated - White

MPN: 8756
UPC: 078477184011
PPN: LEV-8756

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Looking to buy a large quantity?

To view product inventory

CAD$15.39/ EA

Loading add to cart quantity...

Description

Mogul Base, One-Piece, Keyless, HID, Glazed Porcelain Lampholder, HPS up to 400W, Single Circuit, Back Wired, 4KV-Pulse Rated - White

Specifications

Standards and Certifications

CSA Certified: File LR-1863

UL ListedFile E13402

Material Specifications

Circuit: Single Circuit

Shell Material: Glazed Porcelain

Voltage: 600 Volt

Feature4KV-Pulse Rated

Termination12-Inch 14AWG SEW-2 200C Leads

Wattage Rating1500W

Mechanical Specifications

Access: Back Wired

Lamp Socket Base: Mogul

Mounting Type: 2 8-32 Screws

Termination: 12-Inch 14AWG SEW-2 200C Leads

ConstructionOne-Piece

Lamp TypeHPS up to 400W

Operator TypeKeyless

Specifications

Country of Origin: China

RoHS CompliantFalse

Product Features

Availability: OEM Only

Color: White

Lamp Base: Mogul

Screw Shell Material: Nickel-Plated Copper Alloy

Warranty: 1 Year Limited

Center Coil SpringStainless Steel

Contact MaterialNickel-Plated Copper-Alloy

Light TypeHID / Mogul

Standards and CertificationsUL/CSA
