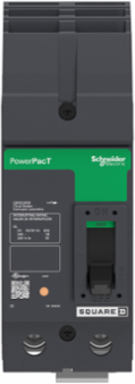

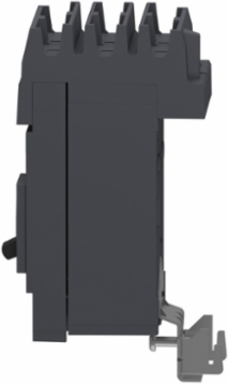

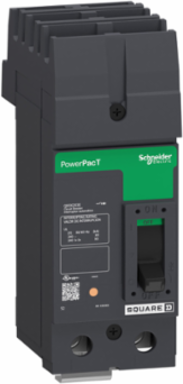

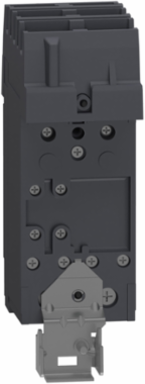

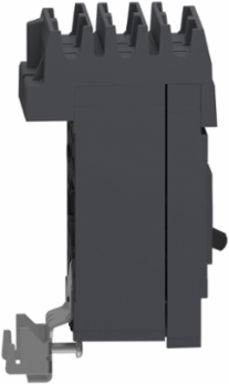

Square D QDA222003 Circuit breaker, PowerPacT Q, 200A, 2 pole, 240VAC, 25kA, I-Line, thermal magnetic, 80%, BA
- MPN: QDA222003
- PPN: SCH-QDA222003
- UNSPSC: 39121601
CAD
$2407.78
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
PowerPacT Q-Frame circuit breakers are used for overcurrent protection and switching on 240VAC systems. They are rated for 240VAC operational voltage and provide thermal magnetic trip protection. PowerPacT Q circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT Q, 200A, 2 pole, circuit breaker has an interrupting rating of 25kA at 208Y/120VAC and 240VAC. This circuit breaker has a continuous current rating of 80% with a BA phase connection. PowerPacT Q circuit breakers comply to UL, CSA, and NOM standards and are IEC certified.
Documentation & Downloads
Specifications
Key Specifications
- Product Or Component Type
- circuit breaker
- Device Application
- distribution
Product NamePowerPact Q
RangePowerPact
Complementary
- Circuit Breaker Application
- HACR rated
- Network Frequency
- 50/60 Hz
- Line Rated Current
- 200-200 A
- Trip Unit Technology
- thermal-magnetic
- Continuous Current Rating
- 80 %
- Mechanical Durability
- 1000 cycles loaded || 5000 cycles no load
- Tightening Torque
- 28-28 N.m 25-150 mm² (AWG 4...300 kcmil)
- Breaking Capacity Code
- D
- Poles Description
- 2P
- Line Rated Current
- 200 A
- Electrical Connection
- I-Line connection, line || lugs, load
- Mounting Height
- 3 in
- Magnetic Hold Current
- 1200 A
- Phase Connection
- BA
Mounting ModeI-Line bracket)
Wire Stripping Length22 mm
Utilisation Categorycategory A
Height6.47 in
Breaking Capacity25 kA 120/208 V AC 50/60 Hz UL || 25 kA 240 V AC 50/60 Hz UL
[Ue] Rated Operational Voltage240 V AC 50/60 Hz UL
Mounting Supportbracket
Magnetic Tripping Current2400-2400 A
Local Signalling1 trip indicator green)
Width3.00 in
Depth3.93 in
[Uimp] Rated Impulse Withstand Voltage8 kV UL
Control Typeoperating handle
Environment
- Ambient Air Temperature For Operation
- 40-70 °C
- Product Certifications
- UL || CSA || NOM
StandardsUL || CSA || NEMA || NOM-003-SCFI-2000
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1406032EN
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Halogen Content Performance
- Halogen free product
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectiveCompliant with Exemptions
California Proposition 65WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
