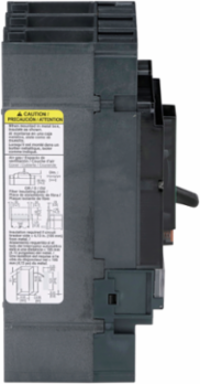

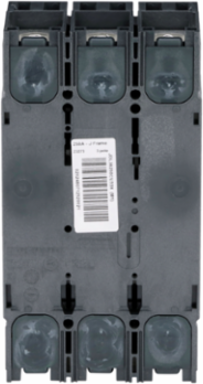

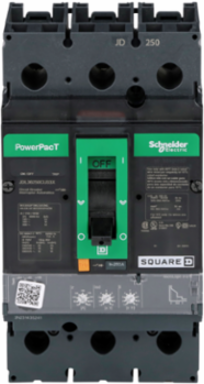

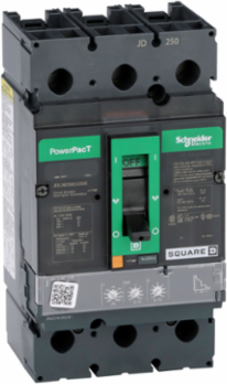

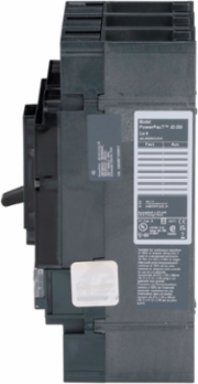

Square D JDL36250CU33X PowerPact J 250A Circuit Breaker, 3 Pole, 600VAC, 14kA, Micrologic 3.2S
- MPN: JDL36250CU33X
- UPC: 785901952282
- PPN: SCH-JDL36250CU33X
- UNSPSC: 39121601
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
PowerPacT J-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT J-Frame circuit breakers are available with either thermal magnetic or MicroLogic electronic trip protection units. This PowerPacT J-Frame circuit breaker provides Micrologic Standard with a 3.2S trip unit and an LSI function with a breaking capacity of 14kA at 600VAC. All PowerPacT J-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT J circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has lugs on both the line and load sides. This PowerPacT J, 250A, 3 pole, circuit breaker has a breaking capacity of 14kA at 600VAC. This circuit breaker has a continuous current rating of 100%. PowerPacT J circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Documentation & Downloads
Specifications
Key Specifications
- Length
- 25 mm
- Height
- 191 mm
- Product Or Component Type
- circuit breaker
- Range
- PowerPact
Width104 mm
Weight2.4 kg
Product NamePowerPact J
Device Applicationdistribution
Complementary
- Mounting Mode
- unit mount lug)
- Terminal Identifier
- AL250JD
- Trip Unit Technology
- electronic, standard, MicroLogic 3.2 S, LSI
- Height
- 191 mm
- Tightening Torque
- 25-25 N.m 95-185 mm² (AWG 3/0...350 kcmil)
- Breaking Capacity Code
- D
- Number Of Slots
- 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
- Net Weight
- 2.4 kg
- Control Type
- toggle
- Wire Stripping Length
- 25 mm
- Utilisation Category
- category A
- Continuous Current Rating
- 100 %
- [Ui] Rated Insulation Voltage
- 750 V IEC 60947-2
- Communication Interface
- Modbus || Ethernet
- Protection Type
- overload protection || short-circuit protection
- Width
- 104 mm
Network Frequency50/60 Hz
[Ics] Rated Service Breaking Capacity25 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 18 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 14 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
Trip Unit NameMicroLogic 3.2 S
[Ue] Rated Operational Voltage600 V AC 50/60 Hz IEC 60947-3
Mounting Supportlug
Local Signallingready 1 LED green) || alarm 1 LED 90 % Ir orange) || alarm 1 LED 105 % Ir red) || switched off (OFF) 1 trip indicator green)
Electrical Connectionlugs, line || lugs, load
[Uimp] Rated Impulse Withstand Voltage8 kV IEC 60947-2
Circuit Breaker ApplicationHACR rated
Line Rated Current250-250 A
Long Time Pick-Up Adjustment Range0.25...1 x In
Breaking Capacity25 kA 240 V AC 50/60 Hz UL 489 || 18 kA 480 V AC 50/60 Hz || 14 kA 600 V AC 50/60 Hz || 20 kA 250 V DC
Suitability For Isolationyes IEC 60947-2
Poles Description3P
Awg GaugeAWG 3/0...350 kcmil aluminium/copper terminals
Depth86 mm
Environment
- Ambient Air Temperature For Operation
- -25-70 °C
- Product Certifications
- UL || CSA || NOM
- Pollution Degree
- 3 IEC 60947-1
- Quality Labels
- CE
StandardsUL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
Ip Degree Of Protectionfront cover IP40
Ambient Air Temperature For Storage-50-85 °C
Operating Altitude< 6561.68 ft (2000 m) without derating || 5000 m with derating
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP2206032EN
- Pvc Free
- Yes
- California Proposition 65
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Circularity Profile
- ENVEOLI2206032EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
China Rohs RegulationProduct out of China RoHS scope. Substance declaration for your information.
Eu Rohs DirectiveCompliant with Exemptions
