PowerPact J Circuit Breaker, 250A, 14kA, 3-Pole, I-Line
PowerPact J Circuit Breaker, 250A, 14kA, 3-Pole, I-Line
Square D

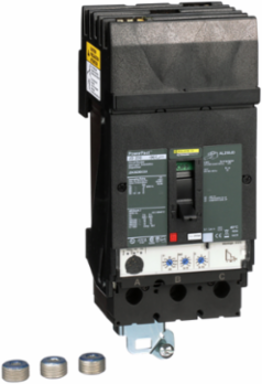

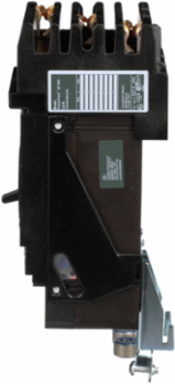

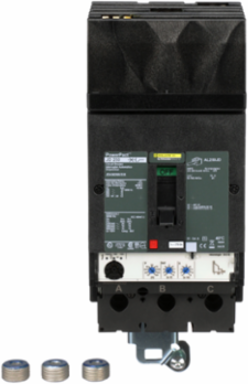

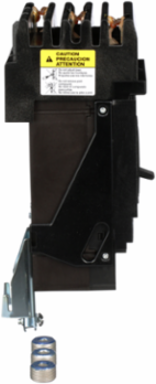

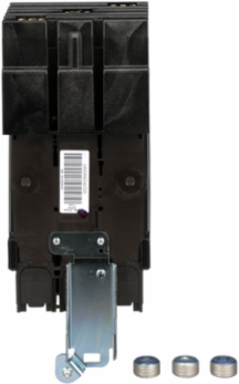

Square D JDA36250U33X PowerPact J Circuit Breaker, 250A, 14kA, 3-Pole, I-Line

  • MPN: JDA36250U33X
  • UPC: 785901133735
  • PPN: SCH-JDA36250U33X
Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

PowerPact J Circuit Breaker, 250A, 14kA, 3-Pole, I-Line

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
Canada, Indonesia, Mexico, United States
Depth86 mm

Communications & Management Attributes

Communication Interface
Modbus, Ethernet

Physical Attributes

Wire Stripping Length
25 mm

Complementary Attributes

Line Rated Current
250-250 A

Important Information Attributes

Persona Type Ids
EU, LC, OM, OM8, PB, SC, SI
Market Segmentation Id
COMMERCIAL, INDUSTRIAL
Electrical Connection
I-Line connection, line, lugs, load
Number Of Slots
2 auxiliary switch OF plug-in), 1 alarm switch SD plug-in), 1 overcurrent trip switch SDE plug-in), 1 voltage release MN or MX plug-in)
Certificate Agency
UL, CSA, NOM
Carbon Footprint Of The Distribution Phase [A4]
0.9478793039769883, 0.9 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]
0.023845978819367005, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
533 kg CO2 eq., 533.4336720846804
Local Publishable Date
2025-11-13
Stocking Flag
Y
Device Type
LV equipment - Low voltage circuit breaker
Traceability
Yes
Average Life Duration
15 year(s)
Weee Product Category
5
Eoli Availability Display
Yes
Reach Full Compliance Status
Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive
Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status
Compliant By Exemption
Rohs Eur Full Compliance Status
Compliant By Exemption
China Rohs Label
7
Without Single Use Plastic
No
Tier Id
1
Function Option Id
STANDARD
Product Kit Identifier
N
Circuit Breaker Application
HACR rated
Control Type
toggle
Energy Efficiency Optimized
False
Mounting Support
bracket
Number Of Poles
3P
Product Availability
Stock - Normally stocked in distribution facility
Product Or Component Type
circuit breaker
Range
PowerPact
Software Version
v6.2.4
Sustainable Packaging
No
Tightening Torque
25-25 N.m 95-185 mm² (AWG 3/0...350 kcmil)
Trip Unit Name
MicroLogic 3.2 S
Utilisation Category
category A
Database Version
2024-01
Pcr Version
PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep
Independent external review
Functional-unit Description
Protect the installation from overloads and short circuits in a circuit with rated voltage Ue, rated current In, with Np poles, a rated breaking capacity Icu, and, if applicable, the specific specifications, in the Industrial application area, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
Functional-unit Unit
unit
Energy Consumption On Product Lifetime, In Kwh
1108.6875
Energy Model - Installation [A5]
[A5]
Energy Model - End Of Life [C1-c4]
[C1 - C4]
Height Nominal
191 mm
[Ue] Rated Operational Voltage
600 V AC 50/60 Hz IEC 60947-3
[Uimp] Rated Impulse Withstand Voltage
8 kV IEC 60947-2
Nbr. Of Units In Pkg.
1
Take-back
No
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator
Market SegmentationCommercial, Industrial
Local Signallingready 1 LED green), alarm 1 LED 90 % Ir orange), alarm 1 LED 105 % Ir red), switched off (OFF) 1 trip indicator green)
Protection Typeoverload protection, short-circuit protection
[Ics] Rated Service Breaking Capacity25 kA 220/240 V AC 50/60 Hz IEC 60947-2, 18 kA 380/440/415 V AC 50/60 Hz IEC 60947-2, 14 kA 500/525 V AC 50/60 Hz IEC 60947-2, 20 kA 250 V DC IEC 60947-2, 20 kA 500 V DC IEC 60947-2
Carbon Footprint Of The End-of-life Phase [C1 To C4]5 kg CO2 eq., 5.222761090812631
Carbon Footprint Of The Manufacturing Phase [A1 To A3]24 kg CO2 eq., 24.198925514119644
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
ServiceabilityYes
Field Service DivisionPPIBS
Weee ScopeIn
Scope PerimeterOutside of Europe
End Of Life Doc RefENVEOLI2206032_V2
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2539
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Awg GaugeAWG 3/0...350 kcmil aluminium/copper terminals
Continuous Current Rating80 %
Device Applicationdistribution
Mounting ModeI-Line bracket)
Network Frequency50/60 Hz
Phase ConnectionCA
Product NamePowerPact J
Quality LabelsCE
ReturnabilityYes
Suitability For Isolationyes IEC 60947-2
Terminal IdentifierAL250JD
Total Lifecycle Carbon Footprint564 kg CO2 eq.
Trip Unit Technologyelectronic, standard, MicroLogic 3.2 S, LSI
Pep CodeENVPEP2206032EN
Pep Verification Date2025-05-01
Psr VersionPSR-0005-ed3-2023 12 08
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y20
Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; United States, US
Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; United States, US
Recyclability Potential, In %49
Width Nominal104 mm
[Ui] Rated Insulation Voltage750 V IEC 60947-2
Long Time Pick-up Adjustment Range0.25...1 x In
Package Weight(Lbs)3.28 kg
Warranty (In Months)18

Environment Attributes Main

Ambient Air Temperature For Operation
-25-70 °C, -25-70 °C
Operating Altitude
< 6561.68 ft (2000 m) without derating, < 6561.68 ft (2000 m) without derating< 6561.68 ft (2000 m) without derating, < 6561.68 ft (2000 m) without derating, 5000 m with derating
Recycled Metal Content At Cr Level
0 %
Mercury Free
Yes
Circularity Profile
ENVEOLI2206032_V2
Eu Rohs Directive
Compliant By Exemption
Packaging Made With Recycled Cardboard
Yes
Reach Regulation
Reference contains Substances of Very High Concern above the threshold
Pep Verification Date
2025-05-01
Psr Version
PSR-0005-ed3-2023 12 08
Ambient Air Temperature For Storage-50-85 °C, -50-85 °C
Take BackNo
China Rohs RegulationX
Carbon Footprint563.827083972409
Environmental DisclosureENVPEP2206032EN
Ip Degree Of Protectionfront cover IP40
Packaging Without Single Use PlasticNo
Pep CodeENVPEP2206032EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review

General Attributes

Product Or Component Type
circuit breaker

Contractual Warranty Attributes

Warranty Period
18 months
Warranty18 months

Batteries & Runtime Attributes

Removable Battery
