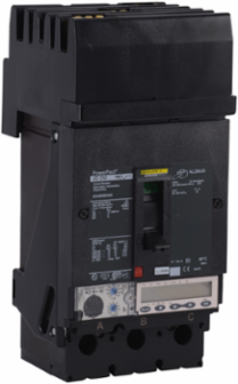

Square D JDA36250U44X PowerPact J Circuit Breaker 250A 3-Pole 600VAC 14kA I-Line
- MPN: JDA36250U44X
- UPC: 785901948797
- PPN: SCH-JDA36250U44X
- UNSPSC: 39121601
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
PowerPacT J-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT J-Frame circuit breakers are available with either thermal magnetic or MicroLogic electronic trip protection units. This PowerPacT J-Frame circuit breaker provides Micrologic Ammeter with a 6.2A trip unit and an LSIG function with a breaking capacity of 14kA at 600VAC. All PowerPacT J-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT J circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. PowerPacT J I-Line circuit breakers are available in I-Line construction for easy installation and removal in I-Line applications. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT J, 250A, 3 pole, circuit breaker has a breaking capacity of 14kA at 600VAC. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. PowerPacT J circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Documentation & Downloads
Specifications
Key Specifications
- Length
- 25 mm
- Height
- 4.5 in
- Product Or Component Type
- circuit breaker
- Range
- PowerPact
Width104 mm
Weight2.4 kg
Product NamePowerPact J
Device Applicationdistribution
Complementary
- Mounting Mode
- I-Line bracket)
- Terminal Identifier
- AL250JD
- Trip Unit Technology
- electronic, ammeter, MicroLogic 6.2 A, LSIG
- [Ue] Rated Operational Voltage
- 600 V AC 50/60 Hz IEC 60947-3
- Mounting Support
- bracket
- Magnetic Tripping Current
- 2500-2500 A
- Number Of Slots
- 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
- Mounting Height
- 4.5 in
- [Uimp] Rated Impulse Withstand Voltage
- 8 kV IEC 60947-2
- Control Type
- toggle
- Wire Stripping Length
- 25 mm
- Utilisation Category
- category A
- Continuous Current Rating
- 80 %
- [Ui] Rated Insulation Voltage
- 750 V IEC 60947-2
- Communication Interface
- Modbus || Ethernet
- Protection Type
- overload protection || short-circuit protection
- Width
- 104 mm
- Phase Connection
- AB
Network Frequency50/60 Hz
[Ics] Rated Service Breaking Capacity25 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 18 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 14 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
Height191 mm
Tightening Torque25-25 N.m 95-185 mm² (AWG 3/0...350 kcmil)
Breaking Capacity CodeD
Local Signallingready 1 LED green) || alarm 1 LED 90 % Ir orange) || alarm 1 LED 105 % Ir red) || switched off (OFF) 1 trip indicator green)
Electrical ConnectionI-Line connection, line || lugs, load
Net Weight2.4 kg
Magnetic Hold Current1250 A
Circuit Breaker ApplicationHACR rated
Line Rated Current250-250 A
Long Time Pick-Up Adjustment Range0.25...1 x In
Breaking Capacity25 kA 240 V AC 50/60 Hz UL 489 || 18 kA 480 V AC 50/60 Hz || 14 kA 600 V AC 50/60 Hz || 20 kA 250 V DC
Suitability For Isolationyes IEC 60947-2
Poles Description3P
Awg GaugeAWG 3/0...350 kcmil aluminium/copper terminals
Depth86 mm
Environment
- Ambient Air Temperature For Operation
- -25-70 °C
- Product Certifications
- UL || CSA || NOM
- Pollution Degree
- 3 IEC 60947-1
- Quality Labels
- CE
StandardsUL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
Ip Degree Of Protectionfront cover IP40
Ambient Air Temperature For Storage-50-85 °C
Operating Altitude< 6561.68 ft (2000 m) without derating || 5000 m with derating
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP2206032EN
- Pvc Free
- Yes
- California Proposition 65
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Circularity Profile
- ENVEOLI2206032EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
China Rohs RegulationProduct out of China RoHS scope. Substance declaration for your information.
Eu Rohs DirectiveCompliant with Exemptions
