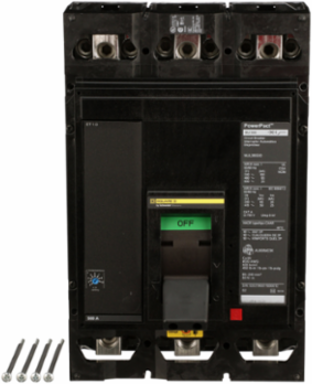

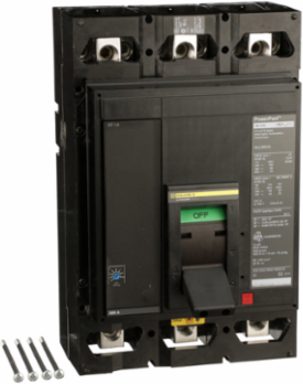

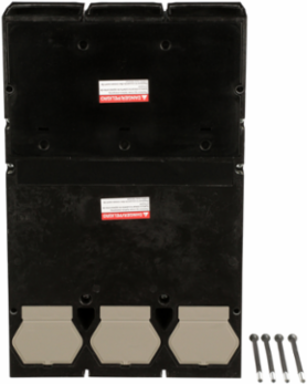

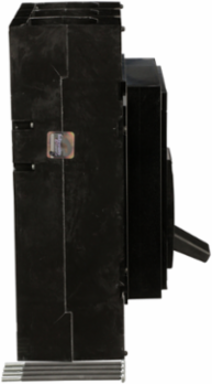

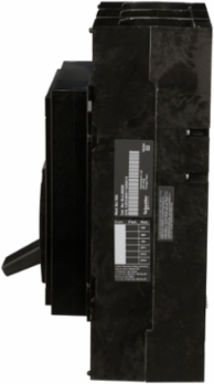

Square D MJL36500 PowerPact M Circuit Breaker 500A 3-Pole 600V AC 25kA ET 1.0 80%
- MPN: MJL36500
- UPC: 785901570196
- PPN: SCH-MJL36500
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
PowerPacT M-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT M-Frame circuit breakers have either a fixed long time electronic trip unit or an adjustable amperage version. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT M circuit breakers are available in 2 and 3-pole unit mount or I-Line construction. This circuit breaker has an electronic trip unit, ET 1.0. This unit has lugs on both the line and load sides. This PowerPacT M, 500A, 3 pole, circuit breaker has an interrupting rating of 25kA at 600VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT M circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
Depth8.05 in
Physical Attributes
- Color
- Black
Wire Stripping Length25 mm
Complementary Attributes
- Line Rated Current
- 500-500 A
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Electrical Connection
- lugs, load, lugs, line
- Certificate Agency
- UL, CSA, NOM
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 20 kg CO2 eq., 20.00835314604034
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 85 kg CO2 eq., 85.27225454577054
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- Yes
- Field Service Division
- PPIBS
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2206030_V2
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2542
- China Rohs In Scope
- No
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Awg Gauge
- 3 x 3/0 AWG...3 x 500 kcmil aluminium/copper
- Continuous Current Rating
- 80 %
- Device Application
- distribution
- Local Signalling
- 1 trip indicator green)
- Mounting Mode
- unit mount lug)
- Network Frequency
- 50/60 Hz
- Product Availability
- Stock - Normally stocked in distribution facility
- Product Or Component Type
- circuit breaker
- Quantity Per Set
- 1
- Returnability
- Yes
- Suitability For Isolation
- yes IEC 60947-2
- Terminal Identifier
- AL800M23K
- Total Lifecycle Carbon Footprint
- 1 444 kg CO2 eq.
- Trip Unit Technology
- electronic, basic, ET 1.0,
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Database Version
- 2024-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- Protect the installation from overloads and short circuits in a circuit with rated voltage Ue, rated current In, with Np poles, a rated breaking capacity Icu, and, if applicable, the specific specifications, in the Industrial application area, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
- Functional-unit Unit
- unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; United States, US
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2020; United States, US
- Recyclability Potential In %
- 57
- Width Nominal
- 8.27 in
- [Ue] Rated Operational Voltage
- 600 V AC 50/60 Hz UL 489
- [Uimp] Rated Impulse Withstand Voltage
- 8 kV IEC 60947-2
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536200020
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Number Of Slots2 auxiliary switch OF plug-in), 1 alarm switch SD plug-in)1 voltage release MN or MX plug-in)
Carbon Footprint Of The Distribution Phase [A4]3.7946960794273874, 4 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]3.7813516850772735, 4 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]1 331 kg CO2 eq., 1330.7346362466396
Local Publishable Date2026-01-21
Stocking FlagN
Device TypeLV equipment - Low voltage circuit breaker
TraceabilityYes
Average Life Duration15 year(s)
Weee Product Category4
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label7
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Circuit Breaker ApplicationHACR rated
Control Typeoperating handle
Energy Efficiency OptimizedFalse
Magnetic Tripping Current1000-5000 A
Mounting Supportlug
Number Of Poles3P
Product NamePowerPact M
Quality LabelsCE
RangePowerPact
Software Versionv6.2.5-6
Sustainable PackagingYes
Tightening Torque50-50 N.m 95-240 mm² (3 x 3/0 AWG...3 x 500 kcmil)
Trip Unit NameET 1.0
Utilisation Categorycategory A
Pep CodeENVPEP2206030EN
Pep Verification Date2025-06-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Installation [A5][A5]
Energy Model - End Of Life [C1-c4][C1 - C4]

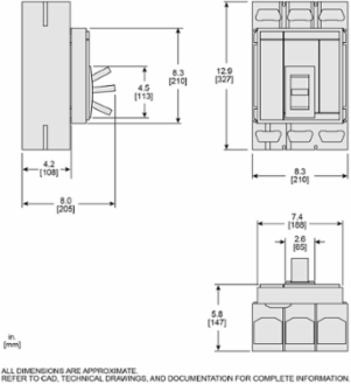

Height Nominal12.86 in
[Ics] Rated Service Breaking Capacity35 kA 240 V AC 50/60 Hz IEC 60947-225 kA 380/415 V AC 50/60 Hz IEC 60947-2
[Ui] Rated Insulation Voltage750 V IEC 60947-2
Long Time Pick-up Adjustment Range300...800 A
Package Weight(Lbs)13.131 kg
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Ambient Air Temperature For Storage
- -50-85 °C, -50-85 °C
- Take Back
- No
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI2206030_V2
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-06-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Ambient Air Temperature For Operation-25-70 °C, -25-70 °C
Operating Altitude< 6561.68 ft (2000 m) without derating, < 6561.68 ft (2000 m) without derating< 6561.68 ft (2000 m) without derating, < 6561.68 ft (2000 m) without derating13123.36 ft (4000 m) with derating
Recycled Metal Content At Cr Level0 %
Carbon Footprint1443.591291702955
Environmental DisclosureENVPEP2206030EN
Ip Degree Of ProtectionIP40
Packaging Without Single Use PlasticYes
Pep CodeENVPEP2206030EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Product Or Component Type
- circuit breaker
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
