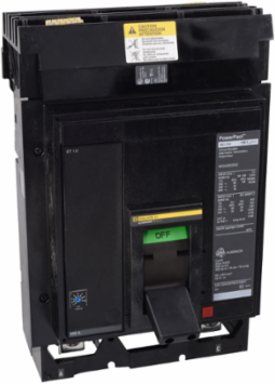

Square D MJA36800LV Circuit breaker, PowerPacT M, 800A, 3 pole, 600VAC, 25kA, I-Line, ET 1.0, 80%, ABC, control wire OFF end
- MPN: MJA36800LV
- PPN: SCH-MJA36800LV
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
PowerPacT M-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT M-Frame circuit breakers have either a fixed long time electronic trip unit or an adjustable amperage version. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT M circuit breakers are available in 2 and 3-pole unit mount or I-Line construction. This circuit breaker has an electronic trip unit, ET 1.0. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT M, 800A, 3 pole, circuit breaker has an interrupting rating of 25kA at 600VAC. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. This unit includes a control wire terminal on the load side. PowerPacT M circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
Depth8.05 in
Physical Attributes
- Color
- Black
Wire Stripping Length25 mm
Complementary Attributes
- Line Rated Current
- 800-800 A
Important Information Attributes
- Number Of Slots
- 2 auxiliary switch OF plug-in), 1 alarm switch SD plug-in)1 voltage release MN or MX plug-in)
- Carbon Footprint Of The Distribution Phase [A4]
- 3.8013427940589333, 4 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 3.7879750259314946, 4 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 1 338 kg CO2 eq., 1338.3245989690154
- Local Publishable Date
- 2026-01-21
- Stocking Flag
- Y
- Device Type
- LV equipment - Low voltage circuit breaker
- Traceability
- Yes
- Average Life Duration
- 15 year(s)
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 7
- Without Single Use Plastic
- Yes
- Product Kit Identifier
- N
- Circuit Breaker Application
- HACR rated
- Control Type
- operating handle
- Electrical Connection
- I-Line connection, linelugs, load
- Local Signalling
- 1 trip indicator green)
- Mounting Mode
- I-Line bracket)
- Network Frequency
- 50/60 Hz
- Product Availability
- Stock - Normally stocked in distribution facility
- Product Or Component Type
- circuit breaker
- Quantity Per Set
- 1
- Returnability
- Yes
- Suitability For Isolation
- yes IEC 60947-2
- Terminal Identifier
- AL800M23K
- Total Lifecycle Carbon Footprint
- 1 451 kg CO2 eq.
- Trip Unit Technology
- electronic, basic, ET 1.0,
- Pep Code
- ENVPEP2206030EN
- Pep Verification Date
- 2025-06-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Installation [A5]
- [A5]
- Energy Model - End Of Life [C1-c4]
- [C1 - C4]
- Height Nominal
- 12.86 in
- [Ics] Rated Service Breaking Capacity
- 35 kA 240 V AC 50/60 Hz IEC 60947-225 kA 380/415 V AC 50/60 Hz IEC 60947-2
- [Ui] Rated Insulation Voltage
- 750 V IEC 60947-2
- Accessory / Separate Part Type
- control wire OFF end
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536200020
Certificate AgencyUL, CSA, NOM
Carbon Footprint Of The End-of-life Phase [C1 To C4]20 kg CO2 eq., 20.043399381845603
Carbon Footprint Of The Manufacturing Phase [A1 To A3]85 kg CO2 eq., 85.4216157409996
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
ServiceabilityNo
Field Service DivisionPPIBS
Weee ScopeIn
Scope PerimeterOutside of Europe
End Of Life Doc RefENVEOLI2206030_V2
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2542
China Rohs In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Awg Gauge3 x 3/0 AWG...3 x 500 kcmil aluminium/copper
Continuous Current Rating80 %
Device Applicationdistribution
Energy Efficiency OptimizedFalse
Magnetic Tripping Current1600-8000 A
Mounting Supportbracket
Number Of Poles3P
Product NamePowerPact M
Quality LabelsCE
RangePowerPact
Software Versionv6.2.5-6
Sustainable PackagingYes
Tightening Torque50-50 N.m 95-240 mm² (3 x 3/0 AWG...3 x 500 kcmil)
Trip Unit NameET 1.0
Utilisation Categorycategory A
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
Functional-unit DescriptionProtect the installation from overloads and short circuits in a circuit with rated voltage Ue, rated current In, with Np poles, a rated breaking capacity Icu, and, if applicable, the specific specifications, in the Industrial application area, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
Functional-unit Unitunit
Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; United States, US
Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; United States, US
Recyclability Potential In %57
Width Nominal8.27 in
[Ue] Rated Operational Voltage600 V AC 50/60 Hz UL 489
[Uimp] Rated Impulse Withstand Voltage8 kV IEC 60947-2
Long Time Pick-up Adjustment Range300...800 A
Package Weight(Lbs)13.154 kg
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Ambient Air Temperature For Storage
- -50-85 °C, -50-85 °C
- Take Back
- No
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI2206030_V2
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-06-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Ambient Air Temperature For Operation-25-70 °C, -25-70 °C
Operating Altitude< 6561.68 ft (2000 m) without derating, < 6561.68 ft (2000 m) without derating< 6561.68 ft (2000 m) without derating, < 6561.68 ft (2000 m) without derating13123.36 ft (4000 m) with derating
Recycled Metal Content At Cr Level0 %
Carbon Footprint1451.378931911851
Environmental DisclosureENVPEP2206030EN
Ip Degree Of ProtectionIP40
Packaging Without Single Use PlasticYes
Pep CodeENVPEP2206030EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Product Or Component Type
- circuit breaker
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
