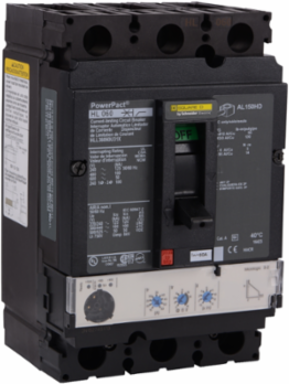

Square D HLL36150U31X PowerPact H Circuit Breaker 150A, 3-Pole, 600VAC, 50kA, Micrologic 3.2
- MPN: HLL36150U31X
- PPN: SCH-HLL36150U31X
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides Micrologic Standard with a 3.2 trip unit and an LI function with a breaking capacity of 50kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has lugs on both the line and load sides. This PowerPacT H, 150A, 3 pole, circuit breaker has a breaking capacity of 50kA at 600VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
Depth86 mm
Communications & Management Attributes
- Communication Interface
- Modbus, Ethernet
Physical Attributes
- Color
- Black
Wire Stripping Length16 mm
Complementary Attributes
- Line Rated Current
- 150-150 A
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Electrical Connection
- lugs, line, lugs, load
- Number Of Slots
- 2 auxiliary switch OF plug-in), 1 alarm switch SD plug-in), 1 overcurrent trip switch SDE plug-in), 1 voltage release MN or MX plug-in)
- Certificate Agency
- UL, CSA, NOM
- Carbon Footprint Of The Distribution Phase [A4]
- 0.4733701916516546, 0.5 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 256 kg CO2 eq., 255.94888049002424
- Local Publishable Date
- 2025-11-13
- Stocking Flag
- Y
- Device Type
- LV equipment - Low voltage circuit breaker
- Traceability
- Yes
- Average Life Duration
- 15 year(s)
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Awg Gauge
- AWG 14...AWG 3/0 aluminium/copper terminal
- Continuous Current Rating
- 80 %
- Device Application
- distribution
- Mounting Mode
- unit mount lug)
- Network Frequency
- 50/60 Hz
- Product Availability
- Stock - Normally stocked in distribution facility
- Product Or Component Type
- circuit breaker
- Quality Labels
- CE
- Range
- PowerPact
- Software Version
- v6.2.4
- Sustainable Packaging
- No
- Total Lifecycle Carbon Footprint
- 292 kg CO2 eq.
- Trip Unit Technology
- electronic, standard, MicroLogic 3.2, LI
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Database Version
- 2024-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- Protect the installation from overloads and short circuits in a circuit with rated voltage Ue, rated current In, with Np poles, a rated breaking capacity Icu, and, if applicable, the specific specifications, in the Industrial application area, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
- Functional-unit Unit
- unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; United States, US
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2020; United States, US
- Recyclability Potential, In %
- 44
- Width Nominal
- 104 mm
- [Ui] Rated Insulation Voltage
- 750 V IEC 60947-2
- Long Time Pick-up Adjustment Range
- 0.25...1 x In
- Package Weight(Lbs)
- 2.846199 kg
- Warranty (In Months)
- 18
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Local Signallingready 1 LED green), alarm 1 LED 90 % Ir orange), alarm LED 105 % Ir red), switched off (OFF) 1 trip indicator green)
Tightening Torque5-5 N.m 2.5-6 mm² (AWG 14...AWG 10), 14-14 N.m 10-95 mm² (AWG 8...AWG 3/0)
[Ics] Rated Service Breaking Capacity125 kA 220/240 V AC 50/60 Hz IEC 60947-2, 100 kA 380/440/415 V AC 50/60 Hz IEC 60947-2, 50 kA 500/525 V AC 50/60 Hz IEC 60947-2, 20 kA 250 V DC IEC 60947-2, 20 kA 500 V DC IEC 60947-2
Carbon Footprint Of The End-of-life Phase [C1 To C4]7 kg CO2 eq., 7.4636450224260535
Carbon Footprint Of The Manufacturing Phase [A1 To A3]28 kg CO2 eq., 28.327103926835548
Local Data StatusPublishable
Return IndicatorY
Stock Policy1
ServiceabilityYes
Field Service DivisionPPIBS
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2206028_V2
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2539
China Rohs In ScopeNo
Without Single Use PlasticNo
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Circuit Breaker ApplicationHACR rated
Control Typetoggle
Energy Efficiency OptimizedFalse
Mounting Supportlug
Number Of Poles3P
Product NamePowerPact H
Protected Poles Description3t
Quantity Per Set1
ReturnabilityYes
Suitability For Isolationyes IEC 60947-2
Terminal IdentifierAL150HD
Trip Unit NameMicroLogic 3.2
Utilisation Categorycategory A
Pep CodeENVPEP2206028EN
Pep Verification Date2025-04-01
Psr VersionPSR-0005-ed3-2023 06 06
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y20
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
Height Nominal163 mm
[Ue] Rated Operational Voltage690 V AC 50/60 Hz IEC 60947-3
[Uimp] Rated Impulse Withstand Voltage8 kV IEC 60947-2
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Ambient Air Temperature For Storage
- -50-85 °C, -50-85 °C
- Take Back
- No
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI2206028_V2
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-04-01
- Psr Version
- PSR-0005-ed3-2023 06 06
Ambient Air Temperature For Operation-25-70 °C, -25-70 °C
Operating Altitude< 6561.68 ft (2000 m) without derating, < 6561.68 ft (2000 m) without derating< 6561.68 ft (2000 m) without derating, < 6561.68 ft (2000 m) without derating, 5000 m with derating
Recycled Metal Content At Cr Level0 %
Carbon Footprint292.21299963093753
Environmental DisclosureENVPEP2206028EN
Ip Degree Of Protectionfront cover IP40 IEC 60529
Packaging Without Single Use PlasticNo
Pep CodeENVPEP2206028EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Product Or Component Type
- circuit breaker
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
