PowerPact H Circuit Breaker 60A 3P 600VAC 25kA Micrologic 6.2E
Schneider Electric

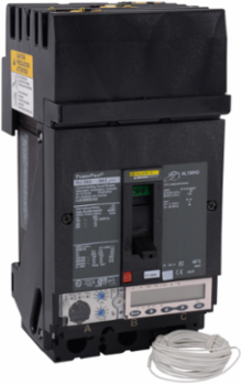

Schneider Electric HJA36060U54X PowerPact H Circuit Breaker 60A 3P 600VAC 25kA Micrologic 6.2E

  • MPN: HJA36060U54X
  • PPN: SCH-HJA36060U54X
  • UNSPSC: 39121601
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below
    • Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides Micrologic Energy with a 6.2E trip unit and an LSIG function with a breaking capacity of 25kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. PowerPacT H I-Line circuit breakers are available in I-Line construction for easy installation and removal in I-Line applications. This breaker has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT H, 60A, 3 pole, circuit breaker has a breaking capacity of 25kA at 600VAC. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.

    Documentation & Downloads

    Specifications

    Key Specifications

    Length
    16 mm
    Height
    4.5 in
    Product Or Component Type
    circuit breaker
    Range
    PowerPact
    Width104 mm
    Weight2.2 kg
    Product NamePowerPact H
    Device Applicationdistribution

    Complementary

    Mounting Mode
    I-Line bracket)
    Terminal Identifier
    AL150HD
    Trip Unit Technology
    electronic, energy, MicroLogic 6.2 E, LSIG
    Height
    163 mm
    Tightening Torque
    5-5 N.m 2.5-6 mm² (AWG 14...AWG 10) || 14-14 N.m 10-95 mm² (AWG 8...AWG 3/0)
    Breaking Capacity Code
    J
    Protected Poles Description
    3t
    Electrical Connection
    I-Line connection, line || lugs, load
    Net Weight
    2.2 kg
    Control Type
    toggle
    Wire Stripping Length
    16 mm
    Utilisation Category
    category A
    Continuous Current Rating
    80 %
    [Ui] Rated Insulation Voltage
    750 V IEC 60947-2
    Communication Interface
    Modbus || Ethernet
    Quantity Per Set
    1
    Color
    Black
    Depth
    86 mm
    Network Frequency50/60 Hz
    [Ics] Rated Service Breaking Capacity100 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 65 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 25 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
    Trip Unit NameMicroLogic 6.2 E
    [Ue] Rated Operational Voltage690 V AC 50/60 Hz IEC 60947-3
    Mounting Supportbracket
    Local Signallingready 1 LED green) || alarm 1 LED 90 % Ir orange) || alarm LED 105 % Ir red) || switched off (OFF) 1 trip indicator green)
    Number Of Slots2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
    Mounting Height4.5 in
    [Uimp] Rated Impulse Withstand Voltage8 kV IEC 60947-2
    Circuit Breaker ApplicationHACR rated
    Line Rated Current60-60 A
    Long Time Pick-Up Adjustment Range0.25...1 x In
    Breaking Capacity100 kA 240 V AC 50/60 Hz UL 489 || 65 kA 480 V AC 50/60 Hz UL 489 || 25 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489
    Suitability For Isolationyes IEC 60947-2
    Poles Description3P
    Awg GaugeAWG 14...AWG 3/0 aluminium/copper terminal
    Width104 mm
    Phase ConnectionABC

    Environment

    Ambient Air Temperature For Operation
    -25-70 °C
    Product Certifications
    UL || CSA || NOM
    Pollution Degree
    3 IEC 60947-1
    Quality Labels
    CE
    StandardsUL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
    Ip Degree Of Protectionfront cover IP40 IEC 60529
    Ambient Air Temperature For Storage-50-85 °C
    Operating Altitude< 6561.68 ft (2000 m) without derating || 5000 m with derating

    Contractual warranty

    Warranty
    18 months

    Offer Sustainability

    Rohs Exemption Information
    Yes
    Environmental Disclosure
    ENVPEP2206028EN
    Pvc Free
    Yes
    California Proposition 65
    WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    Circularity Profile
    ENVEOLI2206028EN
    Mercury FreeYes
    Sustainable Offer StatusGreen Premium product
    Reach RegulationReference contains Substances of Very High Concern above the threshold
    China Rohs RegulationProduct out of China RoHS scope. Substance declaration for your information.
    Eu Rohs DirectiveCompliant with Exemptions
