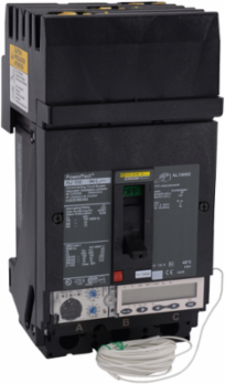

Square D HJA36100U54X PowerPact H Circuit Breaker 100A 3P 600VAC 25kA Micrologic 6.2E
Square D HJA36100U54X PowerPact H Circuit Breaker 100A 3P 600VAC 25kA Micrologic 6.2E
- MPN: HJA36100U54X
- PPN: SCH-HJA36100U54X
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
Description
The PowerPact H-, J-, and L-frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. H- and J-frame circuit breakers are available with either thermal-magnetic or Micrologic electronic trip units. The new generation PowerPact with Micrologic circuit breakers set the standard with direct access to energy management. Integrated metering enhances their protective functions. For the first time, Schneider Electric™ users can monitor energy from 15 to 3000 A, offering new performance in a remarkably compact device. This PowerPact H, circuit breaker has a rated current of 100A and is a 3P breaker. This breaker has a breaking capacity of 25 kA@600VAC and has an electronic trip technology. This breaker complies to UL, CE, IEC & CSA standards. This breaker has a Micrologic Energy with a 6.2E trip unit and a LSIG function. Dimensions for this breaker are 9.73 in (H),4.48 in (W),4.8 in (D) and has an ambient temperature of 40 °C. This product comes with an 18 months warranty.
Specifications
Complementary
- Mounting Mode
- I-Line bracket)
- Terminal Identifier
- AL150HD
- Trip Unit Technology
- electronic, energy, MicroLogic 6.2 E, LSIG
- Height
- 163 mm
- Tightening Torque
- 5-5 N.m 2.5-6 mm² AWG 14...AWG 10) || 14-14 N.m 10-95 mm² AWG 8...AWG 3/0)
- Breaking Capacity Code
- J
- Number Of Slots
- 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
- Electrical Connection
- I-Line connection, line || lugs, load
- Net Weight
- 2.2 kg
- Control Type
- toggle
- Wire Stripping Length
- 16 mm
- [In] Rated Current
- 100-100 A
- Continuous Current Rating
- 80 %
- [Ui] Rated Insulation Voltage
- 750 V IEC 60947-2
- Communication Interface
- Modbus || Ethernet
- Quantity Per Set
- 1
- Colour
- black
- Depth
- 86 mm
Network Frequency50/60 Hz
[Ics] Rated Service Breaking Capacity100 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 65 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 25 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
Trip Unit NameMicroLogic 6.2 E
[Ue] Rated Operational Voltage690 V AC 50/60 Hz IEC 60947-3
Mounting Supportbracket
Local Signallingready 1 LED green) || alarm 1 LED 90 % Ir orange) || alarm LED 105 % Ir red) || switched off (OFF) 1 trip indicator green)
Protected Poles Description3t
Mounting Height4.5 in
[Uimp] Rated Impulse Withstand Voltage8 kV IEC 60947-2
Circuit Breaker ApplicationHACR rated
Utilisation Categorycategory A
Long Time Pick-Up Adjustment Range0.25...1 x In
Breaking Capacity100 kA 240 V AC 50/60 Hz UL 489 || 65 kA 480 V AC 50/60 Hz UL 489 || 25 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489
Suitability For Isolationyes IEC 60947-2
Poles Description3P
Awg GaugeAWG 14...AWG 3/0 aluminum/copper terminal
Width104 mm
Phase ConnectionABC
Environment
- Ambient Air Temperature For Operation
- -25-70 °C
- Product Certifications
- UL || CSA || NOM
- Pollution Degree
- 3 IEC 60947-1
- Quality Labels
- CE
StandardsUL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
Ip Degree Of Protectionfront cover IP40 IEC 60529
Ambient Air Temperature For Storage-50-85 °C
Operating Altitude< 2000 m without derating || 5000 m with derating
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP2206028EN
- Pvc Free
- Yes
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Eu Rohs Directive
- Compliant with Exemptions
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
Circularity ProfileENVEOLI2206028EN
Specifications
- Product Or Component Type
- circuit breaker
- Range
- PowerPact
Product NamePowerPact H
Device Applicationdistribution
