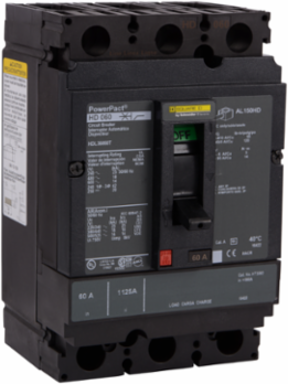

Square D HDL36060CU33X PowerPact H Circuit Breaker 60A 3P 600VAC 14kA Micrologic 3.2S
- MPN: HDL36060CU33X
- UPC: 785901950233
- PPN: SCH-HDL36060CU33X
- UNSPSC: 39121601
CAD
$2936.94
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides Micrologic Standard with a 3.2S trip unit and an LSI function with a breaking capacity of 14kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has lugs on both the line and load sides. This PowerPacT H, 60A, 3 pole, circuit breaker has a breaking capacity of 14kA at 600VAC. This circuit breaker has a continuous current rating of 100%. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Documentation & Downloads
Specifications
Key Specifications
| Length | 16 mm |
|---|---|
| Height | 163 mm |
| Product Or Component Type | circuit breaker |
| Range | PowerPact |
| Width | 104 mm |
|---|---|
| Weight | 2.2 kg |
| Product Name | PowerPact H |
| Device Application | distribution |
Complementary
| Mounting Mode | unit mount lug) |
|---|---|
| Terminal Identifier | AL150HD |
| Trip Unit Technology | electronic, standard, MicroLogic 3.2 S, LSI |
| Height | 163 mm |
| Tightening Torque | 5-5 N.m 2.5-6 mm² (AWG 14...AWG 10) || 14-14 N.m 10-95 mm² (AWG 8...AWG 3/0) |
| Breaking Capacity Code | D |
| Protected Poles Description | 3t |
| Electrical Connection | lugs, line || lugs, load |
| [Uimp] Rated Impulse Withstand Voltage | 8 kV IEC 60947-2 |
| Circuit Breaker Application | HACR rated |
| Line Rated Current | 60-60 A |
| Long Time Pick-Up Adjustment Range | 0.25...1 x In |
| Breaking Capacity | 25 kA 240 V AC 50/60 Hz UL 489 || 18 kA 480 V AC 50/60 Hz || 14 kA 600 V AC 50/60 Hz || 20 kA 250 V DC |
| Suitability For Isolation | yes IEC 60947-2 |
| Poles Description | 3P |
| Awg Gauge | AWG 14...AWG 3/0 aluminium/copper terminal |
| Width | 104 mm |
| Network Frequency | 50/60 Hz |
|---|---|
| [Ics] Rated Service Breaking Capacity | 25 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 18 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 14 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2 |
| Trip Unit Name | MicroLogic 3.2 S |
| [Ue] Rated Operational Voltage | 690 V AC 50/60 Hz IEC 60947-3 |
| Mounting Support | lug |
| Local Signalling | ready 1 LED green) || alarm 1 LED 90 % Ir orange) || alarm LED 105 % Ir red) || switched off (OFF) 1 trip indicator green) |
| Number Of Slots | 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in) |
| Net Weight | 2.2 kg |
| Control Type | toggle |
| Wire Stripping Length | 16 mm |
| Utilisation Category | category A |
| Continuous Current Rating | 100 % |
| [Ui] Rated Insulation Voltage | 750 V IEC 60947-2 |
| Communication Interface | Modbus || Ethernet |
| Quantity Per Set | 1 |
| Color | Black |
| Depth | 86 mm |
Environment
| Ambient Air Temperature For Operation | -25-70 °C |
|---|---|
| Product Certifications | UL || CSA || NOM |
| Pollution Degree | 3 IEC 60947-1 |
| Quality Labels | CE |
| Standards | UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2 |
|---|---|
| Ip Degree Of Protection | front cover IP40 IEC 60529 |
| Ambient Air Temperature For Storage | -50-85 °C |
| Operating Altitude | < 6561.68 ft (2000 m) without derating || 5000 m with derating |
Contractual warranty
| Warranty | 18 months |
|---|
Offer Sustainability
| Rohs Exemption Information | Yes |
|---|---|
| Environmental Disclosure | ENVPEP2206028EN |
| Pvc Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Circularity Profile | ENVEOLI2206028EN |
| Mercury Free | Yes |
|---|---|
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Eu Rohs Directive | Compliant with Exemptions |
