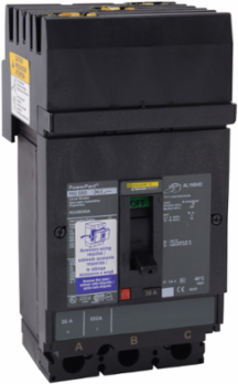

Square D HGA36150U43X PowerPact H Circuit Breaker, 150A, 3 Pole, 600VAC, 18kA, Micrologic 5.2A
- MPN: HGA36150U43X
- PPN: SCH-HGA36150U43X
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides Micrologic Ammeter with a 5.2A trip unit and an LSI function with a breaking capacity of 18kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. PowerPacT H I-Line circuit breakers are available in I-Line construction for easy installation and removal in I-Line applications. This breaker has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT H, 150A, 3 pole, circuit breaker has a breaking capacity of 18kA at 600VAC. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
Depth86 mm
Communications & Management Attributes
- Communication Interface
- Modbus, Ethernet
Physical Attributes
- Color
- Black
Wire Stripping Length16 mm
Complementary Attributes
- Line Rated Current
- 150-150 A
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Local Signalling
- ready 1 LED green), alarm 1 LED 90 % Ir orange)alarm LED 105 % Ir red)switched off (OFF) 1 trip indicator green)
- Tightening Torque
- 5-5 N.m 2.5-6 mm² (14 AWG...10 AWG), 14-14 N.m 10-95 mm² (8 AWG...3/0 AWG)
- [Ics] Rated Service Breaking Capacity
- 65 kA 220/240 V AC 50/60 Hz IEC 60947-235 kA 380/440/415 V AC 50/60 Hz IEC 60947-218 kA 500/525 V AC 50/60 Hz IEC 60947-2, 20 kA 250 V DC IEC 60947-2, 20 kA 500 V DC IEC 60947-2
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 7 kg CO2 eq., 7.4636450224260535
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 28 kg CO2 eq., 28.327103926835548
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- Yes
- Field Service Division
- PPIBS
- Weee Scope
- In
- Scope Perimeter
- Outside of Europe
- End Of Life Doc Ref
- ENVEOLI2206028_V2
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2539
- China Rohs In Scope
- No
- Without Single Use Plastic
- No
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Circuit Breaker Application
- HACR rated
- Control Type
- toggle
- Electrical Connection
- I-Line connection, linelugs, load
- Mounting Mode
- I-Line bracket)
- Network Frequency
- 50/60 Hz
- Phase Connection
- ABC
- Product Name
- PowerPact H
- Protected Poles Description
- 3t
- Quantity Per Set
- 1
- Returnability
- Yes
- Suitability For Isolation
- yes IEC 60947-2
- Terminal Identifier
- AL150HD
- Trip Unit Name
- MicroLogic 5.2 A
- Utilisation Category
- category A
- Database Version
- 2024-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- Protect the installation from overloads and short circuits in a circuit with rated voltage Ue, rated current In, with Np poles, a rated breaking capacity Icu, and, if applicable, the specific specifications, in the Industrial application area, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
- Functional-unit Unit
- unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; United States, US
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2020; United States, US
- Recyclability Potential In %
- 44
- Width Nominal
- 104 mm
- [Ui] Rated Insulation Voltage
- 750 V IEC 60947-2
- Long Time Pick-up Adjustment Range
- 0.25...1 x In
- Package Weight(Lbs)
- 3.629 kg
- Warranty (In Months)
- 18
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Number Of Slots2 auxiliary switch OF plug-in), 1 alarm switch SD plug-in)1 overcurrent trip switch SDE plug-in)1 voltage release MN or MX plug-in)
Certificate AgencyUL, CSA, NOM
Carbon Footprint Of The Distribution Phase [A4]0.4733701916516546, 0.5 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]256 kg CO2 eq., 255.94888049002424
Local Publishable Date2025-11-13
Stocking FlagN
Device TypeLV equipment - Low voltage circuit breaker
TraceabilityYes
Average Life Duration15 year(s)
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Awg Gauge14 AWG...3/0 AWG aluminium/copper terminal
Continuous Current Rating80 %
Device Applicationdistribution
Energy Efficiency OptimizedFalse
Mounting Supportbracket
Number Of Poles3P
Product AvailabilityStock - Normally stocked in distribution facility
Product Or Component Typecircuit breaker
Quality LabelsCE
RangePowerPact
Software Versionv6.2.4
Sustainable PackagingNo
Total Lifecycle Carbon Footprint292 kg CO2 eq.
Trip Unit Technologyelectronic, ammeter, MicroLogic 5.2 A, LSI
Pep CodeENVPEP2206028EN
Pep Verification Date2025-04-01
Psr VersionPSR-0005-ed3-2023 06 06
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
Height Nominal163 mm
[Ue] Rated Operational Voltage690 V AC 50/60 Hz IEC 60947-3
[Uimp] Rated Impulse Withstand Voltage8 kV IEC 60947-2
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536200020
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Ambient Air Temperature For Storage
- -50-85 °C, -50-85 °C
- Take Back
- No
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI2206028_V2
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-04-01
- Psr Version
- PSR-0005-ed3-2023 06 06
Ambient Air Temperature For Operation-25-70 °C, -25-70 °C
Operating Altitude< 6561.68 ft (2000 m) without derating, < 6561.68 ft (2000 m) without derating< 6561.68 ft (2000 m) without derating, < 6561.68 ft (2000 m) without derating5000 m with derating
Recycled Metal Content At Cr Level0 %
Carbon Footprint292.21299963093753
Environmental DisclosureENVPEP2206028EN
Ip Degree Of Protectionfront cover IP40 IEC 60529
Packaging Without Single Use PlasticNo
Pep CodeENVPEP2206028EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Product Or Component Type
- circuit breaker
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
