Schneider Electric BGA140201 PowerPacT B Circuit Breaker, 20A, 1 Pole, 35kA, I-Line, 80% Rating

PowerPacT B Circuit Breaker, 20A, 1 Pole, 35kA, I-Line, 80% Rating
PowerPacT B Circuit Breaker, 20A, 1 Pole, 35kA, I-Line, 80% Rating
PowerPacT B Circuit Breaker, 20A, 1 Pole, 35kA, I-Line, 80% Rating
PowerPacT B Circuit Breaker, 20A, 1 Pole, 35kA, I-Line, 80% Rating
PowerPacT B Circuit Breaker, 20A, 1 Pole, 35kA, I-Line, 80% Rating
  • MPN: BGA140201
  • UPC: 785901065890
  • PPN: SCH-BGA140201
  • UNSPSC: 39121601

Spec sheet

Loading compare button...

  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below
  • In Stock

    Company Stock:

    00

    Lead times may vary. For an accurate estimate please contact us.

    Looking to buy a large quantity?

    To view product inventory

    CAD$753.97/ EA

    Description

    PowerPacT B-Frame brings thermal-mechanical circuit protection in a compact size and offers a wide range of accessories, auxiliaries, and connection options. This PowerPacT B-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 35kA at 480Y/277VAC. All PowerPacT B-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT B-Frame circuit breakers come in 1 to 4-pole unit mount construction and in 1 to 3-pole I-Line construction. I-Line circuit breakers come with a shrouded I-Line plug on jaw. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT B, 20A, 1 pole, circuit breaker has a breaking capacity of 35kA at 480Y/277VAC. This circuit breaker has a continuous current rating of 80% with an A phase connection. PowerPacT B circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.

    Features

    • Available in 1, 2, 3, and 4 pole for unit mounts
    • Available in 1, 2, and 3 pole for I-Line
    • Dual rated AC/DC with 3 levels of breaking capacity
    • A wide range of accessories, auxiliaries, and lug connections available
    • UL, CSA, NOM, IEC, CCC certified, and CE marked

    Specifications

    Physical Attributes

    Color
    Gray RAL 7016)
    Wire Stripping Length20 mm

    Conformance Attributes

    Product Certifications
    UL, IEC, CCC, EAC, CSA, NOM
    StandardsNEMA AB1, NMX J-266, EN/IEC 60947-2, UL 489, GB 14048.2, CSA C22.2 No 5, EN/IEC 60947-5-1

    Complementary Attributes

    Line Rated Current
    20-20 A

    Important Information Attributes

    Persona Type Ids
    LC, OM, OM8, PB
    Market Segmentation Id
    COMMERCIAL, INDUSTRIAL
    Electrical Connection
    I-Line connection, line, lugs, load
    Carbon Footprint Of The Distribution Phase A4
    0, 0 kg CO2 eq.
    Carbon Footprint Of The Installation Phase A5
    0.22854224579866408, 0.2 kg CO2 eq.
    Carbon Footprint Of The Use Phase B2 B3 B4 B6
    58 kg CO2 eq., 58.14147408662282
    Local Publishable Date
    2025-11-13
    Serviceability
    No
    Field Service Division
    PPIBS
    Legacy WEEE Scope
    In
    EOLI Availability Display
    No need of specific recycling operations
    Reach Full Compliance Status Id
    CONTAINS_SVHC
    ROHS EUR In Scope
    Yes
    ROHS EUR Full Compliance Status
    Compliant with Exemptions
    China ROHS In Scope
    No
    With Recycled Cardboard
    Yes
    Product Contributes To Saved And Avoided Emissions
    No
    Function Option Id
    STANDARD
    AWG Gauge
    AWG 14...AWG 2/0 aluminium/copper
    Connection Pitch
    27 mm
    Control Type
    toggle
    Device Short Name
    BG 020
    Energy Efficiency Optimized
    False
    Local Signalling
    presence of auxiliary contacts flag green)
    Mounting Mode
    I-Line
    Package Weight Lbs
    730.0 g
    Poles Description
    1P
    Product Or Component Type
    circuit breaker
    Quantity Per Set
    set of 1
    Returnability
    Yes
    Sustainable Packaging
    Yes
    Trip Unit Technology
    thermal-magnetic
    Ics Rated Service Breaking Capacity2
    65 kA 220...240 V AC 50/60 Hz IEC 60947-2
    Ui Rated Insulation Voltage2
    800 V IEC 60947-2
    Medium Desc
    Circuit breaker, PowerPacT B, 20A, 1 pole, 480Y/277VAC, 35kA, I-Line, thermal magnetic, 80%, A
    Product Kit Identifier
    N
    Database Version
    2024-01
    Pcr Version
    PEP-PCR-ed4-2021 09 06
    Type Of Verification For The Pep
    Independent external review
    Functional Unit Description
    Protect the installation from overloads and short circuits in a circuit with rated voltage Ue, rated current In, with Np poles, a rated breaking capacity Icu, and, if applicable, the specific specifications, in the Industrial application area, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
    Energy Model Manufacturing A1 A3 2
    Electricity Mix; Low voltage; 2020; Mexico, MX
    Energy Model Use B6 2
    Electricity Mix; Low voltage; 2020; United States, US
    Global Commercial Status
    Commercialised
    Ics Rated Service Breaking Capacity5
    65 kA 220...240 V AC 50/60 Hz IEC 60947-2
    Ui Rated Insulation Voltage5
    800 V IEC 60947-2
    Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
    Market SegmentationCommercial, Industrial
    Tightening Torque3.6-4.4 N.m 2.5-6 mm² (AWG 14...AWG 10), 5-6.2 N.m 10-70 mm² (AWG 8...AWG 2/0)
    Carbon Footprint Of The End Of Life Phase C1 To C41 kg CO2 eq., 1.334078383224374
    Carbon Footprint Of The Manufacturing Phase A1 To A34 kg CO2 eq., 4.192480929591857
    Local Data StatusPublishable
    Device TypeLV equipment - Low voltage circuit breaker
    TraceabilityYes
    Average Life Duration15 year(s)
    Scope PerimeterOutside of Europe
    Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
    Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
    ROHS EUR StatusCompliant with Exemptions
    ROHS EUR Full Compliance Status IdCOMPLIANT_WITH_EXEMPTIONS
    Green Premium Status For ReportingGreen Premium product
    Without Single Use PlasticYes
    Return IndicatorY
    Function OptionStandard
    Circuit Breaker ApplicationHACR rated
    Continuous Current Rating80 %
    Device Applicationdistribution
    Electrical Durability10000 cycles IEC 947-1 Annex K ed 5.2 440 V In
    Halogen Free StatusHalogen free product
    Mechanical Durability20000 cycles IEC 947-1 Annex K ed 5.2
    Network Frequency50/60 Hz
    Phase ConnectionA
    Product AvailabilityStock - Normally stocked in distribution facility
    Quality LabelsCE
    RangePowerPact
    Suitability For Isolationyes IEC 60947-2
    Total Lifecycle Carbon Footprint64 kg CO2 eq.
    Utilisation Categorycategory A
    Ue Rated Operational Voltage2240 V AC 50/60 Hz UL 489
    Uimp Rated Impulse Withstand Voltage28 kV IEC 60947-2
    Stocking FlagY
    Pep CodeENVPEP2311047EN
    Pep Verification Date2025-05-01
    Psr VersionPSR-0005-ed3.1-EN-2023 12 08
    Data Sourceextrapolated product
    Functional Unit Unitunit
    Energy Model Installation A5 2No energy used
    Energy Model End Of Life C1 C4 2Global, European and French datasets are used.
    Product NamePowerPact B
    Ue Rated Operational Voltage5240 V AC 50/60 Hz UL 489
    Uimp Rated Impulse Withstand Voltage58 kV IEC 60947-2

    Environment Attributes Main

    Take Back
    No, Nej
    EU ROHS Directive
    Compliant By Exemption , Compliant with Exemptions
    ROHS Exemption Information
    Yes
    Recycled Metal Content At Cr Level
    0 %
    Carbon Footprint
    63.89657564523772
    Ambient Air Temperature For Operation
    -25-70 °C
    Environmental Disclosure
    ENVPEP2311047EN
    IP Degree Of Protection
    front cover IP40 IEC 60529
    Packaging Without Single Use Plastic
    Yes
    Pep Code
    ENVPEP2311047EN
    Pcr Version
    PEP-PCR-ed4-2021 09 06
    Type Of Verification For The Pep
    Independent external review
    China ROHS RegulationProduct out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
    Operating Altitude< 6561.68 ft (2000 m) without derating, < 6561.68 ft (2000 m) without derating, < 6561.68 ft (2000 m) without derating, < 6561.68 ft (2000 m) without derating, 5000 m with derating
    Halogene PerformanceHalogen free product
    Mercury FreeYes
    9 MM Pitches3
    Ambient Air Temperature For Storage-50-85 °C
    Halogen Content PerformanceHalogen free product
    Packaging Made With Recycled CardboardYes
    Reach RegulationReference contains Substances of Very High Concern above the threshold
    Pep Verification Date2025-05-01
    Psr VersionPSR-0005-ed3.1-EN-2023 12 08

    General Attributes

    Product Or Component Type
    circuit breaker

    Specifications

    Depth
    89 mm

    Batteries & Runtime Attributes

    Removable Battery
    No

    Downloads

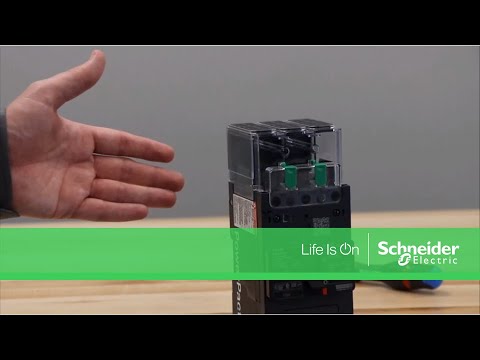

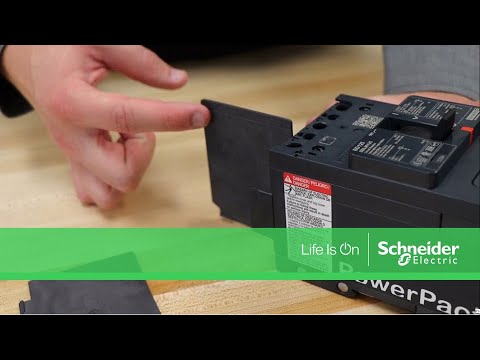

    Video
