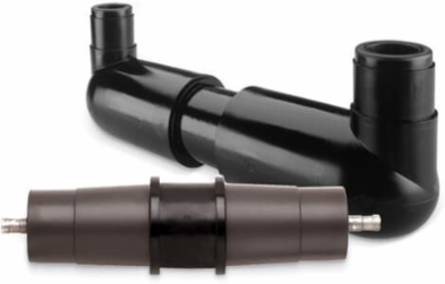

Thomas & Betts M15CLF100-222-WMBQ MOLDED CLF 100A 200A WELLS WALL BKT

MPN: M15CLF100-222-WMBQ
UPC: 783786438891
PPN: T-B-M15CLF100-222-WMBQ

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Encapsulated Molded Current-Limiting Fuses, Nominal Fuse Voltage Rating 8.3kV, Current Rating Amps 100, Option 222 -200 Amp Bushing Well on one end and two 200 Amp Bushing wells on the other end, Option WMBQ - Wall mounting bracket with parking stands and quick release style hold down straps

Specifications

Additional Information

Application	Suitable for Padmount, Subsurface or Vault Installations
Current Rating	100 A
Mounting Type	Clip
Product Name	ELECTRICAL FUSE,>1000V
Special Functions	EPDM Molded Rubber Deadfront Contruction Insulates, Shields and Elimates Exposed Live Parts. Lightweight Fuses are Fully Sealed and Submersible. Specially Designed Fuse Elements with Built-in Low and High Current Interrupting Capability Provide Full Range Fault Current Protection thru 50kA. Current Limiting Protection limits the System Available Fault Current and Dramatically reduces Stresses on Equipment. Internal Fuse Sheild Prevents Corona and Deterioration of the Fuse Element.
UPC	783786438891

Brand / Label	Elastimold
Material	EPDM Molded Rubber
Number of Batteries	0
Product Type	Molded Current-Limiting Fuse
Standards	ANSI C37.40, ANSI C37.41, ANSI C37.47, IEEE 386
Voltage Rating	15.0 kV

Dimensions

Product Net Weight	43 lb19.501 kg

Container Information

Package Level 2 Units	1 piece
Package Level 2 Height	16 in406 mm

Package Level 2 Width	8.5 in216 mm
Package Level 2 Depth / Length	34.25 in870 mm

Classifications

UNSPSC	39121626
IDEA Granular Category Code (IGCC)	4980 >> Medium voltage fuse

WEEE Category	Product Not in WEEE Scope

Ordering

EAN	0783786438891

Customs Tariff Number	8535100040
