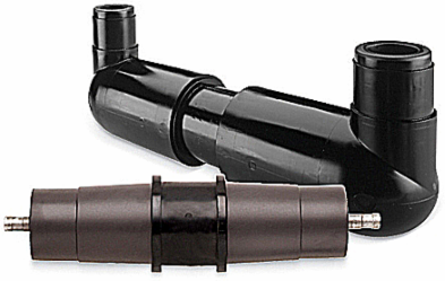

Thomas & Betts M25CLF0656E2SMB1955 Molded Current-Limiting Fuse

MPN: M25CLF0656E2SMB1955
UPC: 075114242257
PPN: T-B-M25CLF0656E2SMB1955

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Encapsulated Molded Current-Limiting Fuses, Nominal Fuse Voltage Rating 15.5kV, Current Rating Amps 65, Option 6E2 - 600 Amp Elbow connector on one end and a 200 Amp Bushing Well on the other end, Option SMB - Support Mounting Bracket includes Bolted style Hold Down Strap, customer specific modifications

Specifications

North American Specifications (UNSPSC)

UNSPSC	39121626 Medium voltage fuse
Brand Name	Elastimold
Special Features	EPDM Molded Rubber Deadfront Contruction Insulates, Shields and Elimates Exposed Live Parts. Lightweight Fuses are Fully Sealed and Submersible. Specially Designed Fuse Elements with Built-in Low and High Current Interrupting Capability Provide Full Range Fault Current Protection thru 50kA. Current Limiting Protection limits the System Available Fault Current and Dramatically reduces Stresses on Equipment. Internal Fuse Sheild Prevents Corona and Deterioration of the Fuse Element.
Standard	ANSI C37.40, ANSI C37.41, ANSI C37.47, IEEE 386
Voltage Rating	25.0kV
Material	EPDM Molded Rubber

IGCC	4980 Medium voltage fuse
Type	Molded Current-Limiting Fuse
Application	Suitable for Padmount, Subsurface or Vault Installations
Amperage Rating	65 Amps
Mounting	Clip
Size	Overall Length 19-5/8 inches (498mm) x Width 5-1/8 inches (130mm)
