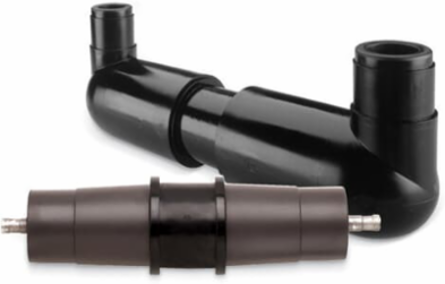

Thomas & Betts M35CLF020 MOLDED CLF 20 AMP
- MPN: M35CLF020
- UPC: 783786040223
- PPN: T-B-M35CLF020
- UNSPSC: 39121626
CAD
$2737.85
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Encapsulated Molded Current-Limiting Fuses, Nominal Fuse Voltage Rating 23.0kV, Current Rating Amps 20
Specifications
Additional Information
| Application | Suitable for Padmount, Subsurface or Vault Installations |
|---|---|
| Current Rating | 20 A |
| Material | EPDM Molded Rubber |
| Product Name | ELECTRICAL FUSE,>1000V |
| Special Functions | EPDM Molded Rubber Deadfront Construction Insulates, Shields and Eliminates Exposed Live Parts. Lightweight Fuses are Fully Sealed and Submersible. Specially Designed Fuse Elements with Built-in Low and High Current Interrupting Capability Provide Full Range Fault Current Protection thru 50kA. Current Limiting Protection limits the System Available Fault Current and Dramatically reduces Stresses on Equipment. Internal Fuse Shield Prevents Corona and Deterioration of the Fuse Element. |
| Voltage Rating | 35.0 kV |
| Brand / Label | Elastimold |
|---|---|
| Effective Date | 20101109 |
| Mounting Type | Clip |
| Product Type | Molded Current-Limiting Fuse |
| Standards | ANSI C37.40, ANSI C37.41, ANSI C37.47, IEEE 386 |
Classifications
| WEEE Category | Product Not in WEEE Scope |
|---|
| IDEA Granular Category Code (IGCC) | 4980 >> Medium voltage fuse |
|---|
Ordering
| Country of Origin | United States (US) |
|---|
| Selling Unit of Measure | each |
|---|
