Weidmuller 3073140000 MOPL K71 STAHL
- MPN: 3073140000
- PPN: WDM-3073140000
CAD
$26.60
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

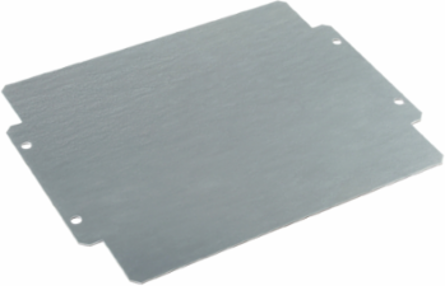

Klippon K (aluminium empty enclosure), Mounting plate, Mounting plate, Height: 213 mm, Width: 264 mm, Depth: 2 mm, Material: Sheet steel, galvanized, galvanized, silver
Documentation & Downloads
Specifications
Approvals
| ROHS | Conform |
|---|
General Information On Accessories
| Material | Sheet steel, galvanized |
|---|---|
| Mounting dimension - height | 80 mm |
| Surface finish | galvanized |
| Material thickness | 2 mm |
|---|---|
| Mounting dimension - width | 250 mm |
| Type of fixing | when screwed in |
Dimensions And Weights
| Width | 264 mm |
|---|---|
| Height | 213 mm |
| Depth | 2 mm |
| Mounting dimension - width | 250 mm |
| Net weight | 789 g |
| Width (inches) | 10.394 inch |
|---|---|
| Height (inches) | 8.386 inch |
| Depth (inches) | 0.079 inch |
| Mounting dimension - height | 80 mm |
Classifications
| ETIM 6.0 | EC000213 |
|---|---|
| eClass 9.0 | 27-40-06-39 |
| eClass 10.0 | 27-40-06-39 |
| ETIM 7.0 | EC000213 |
|---|---|
| eClass 9.1 | 27-18-92-90 |
| UNSPSC | 31-16-23-03 |
General Information
| Material thickness | 2 mm |
|---|---|
| Surface finish | galvanized |
| Material | Sheet steel, galvanized |
|---|---|
| Impact resistance | 10.00 J |
