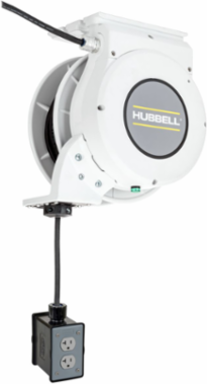

Hubbell Wiring Device-Kellems HBLM45123R220M1 Motorized Cord Reel, Black Cord, 45ft, #12/3 SJO, POB, (2) 20A 125V TR Receptacles

MPN: HBLM45123R220M1
UPC: 783585974583
PPN: HBL-HBLM45123R220M1

$4058.66

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Motorized Cord Reel, 45ft, #12/3 SJO, Black Cord, Black Portable Outlet Box with (2) 20 Amp, 125 Volt Tamper-Resistant Duplex Receptacles

Features

Durable, Corrosion Resistant Cast Aluminum Housing and Base
UL Type 1
Multi-Position Guide Arm can be mounted in two different positions
Ratchet lock automatically maintains desired cord length or can be disengaged in the field for constant tension applications
with (2) 20A Tamper Resistant Duplex Receptacles
Tamper-Resistant Receptacles

Specifications

Key Specifications

Country of Origin	Mexico
Cable Type	12/3 SJO
ComingSoon Text	Yes
Current / Amperage Rating	20 A
Industry Standard(s)	UL 355 Listed
General Literature Asset 1 Display Text	inREACH™ Motorized Cord Reels - FAQ
Class Code	A52
Harmonization Code	8544429090
Sub Class Code	A52A510
Base Unit of Measure	EA
Carton - SCC-14 Next Lower Level Sub Pack	00783585974583
Pallet Height	38.400 in
Pallet Weight	475.600 lb.

Cable Length	45 (13.72)
Color	White
Comming Soon	Yes
Width	14.700 in
Voltage Rating	250
Style	Industrial
Freight Class Code	06168002
Image Actual Or Representative	A
Series	Motorized
BOX SIZE	16.700x16.400x14.700 (in)
Case Weight	36.300 lb.
Pallet Length	48.000 in
Pallet Width	40.000 in
