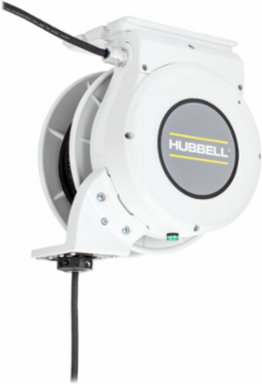

Hubbell Wiring Device-Kellems HBLM75124 Motorized Cord Reel, 75ft, #12/4 SJO, Wire Leads
- MPN: HBLM75124
- UPC: 783585974415
- PPN: HBL-HBLM75124
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Motorized Cord Reel, 75ft, #12/4 SJO, Wire Leads
Features
- Durable, Corrosion Resistant Cast Aluminum Housing and Base
- UL Type 1
- Multi-Position Guide Arm can be mounted in two different positions
- Ratchet lock automatically maintains desired cord length or can be disengaged in the field for constant tension applications
Specifications
Key Specifications
| Country of Origin | China |
|---|---|
| Cable Type | 12/4 SJO |
| ComingSoon Text | Yes |
| Current / Amperage Rating | 20 A |
| Industry Standard(s) | UL 355 Listed |
| General Literature Asset 1 Display Text | inREACH™ Motorized Cord Reels - FAQ |
| Class Code | A52 |
| Harmonization Code | 8544493080 |
| Sub Class Code | A52A510 |
| Base Unit of Measure | EA |
| Carton - SCC-14 Next Lower Level Sub Pack | 00783585974415 |
| Pallet Height | 38.600 in |
| Pallet Weight | 392.000 lb. |
| Cable Length | 75 (22.86) |
|---|---|
| Color | White |
| Comming Soon | Yes |
| Width | 16.400 in |
| Voltage Rating | 250 |
| Style | Industrial |
| Freight Class Code | 06168002 |
| Image Actual Or Representative | A |
| Series | Motorized |
| BOX SIZE | 16.800x16.700x16.400 (in) |
| Case Weight | 44.000 lb. |
| Pallet Length | 48.000 in |
| Pallet Width | 40.000 in |
