nVent Hoffman MPA04R Mounting Plate Brackets for Rear, 50x50x38mm, Zinc Plated Steel
- MPN: MPA04R
- UPC: 783510509583
- PPN: HOF-MPA04R
- UNSPSC: 39121321
CAD
$182.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

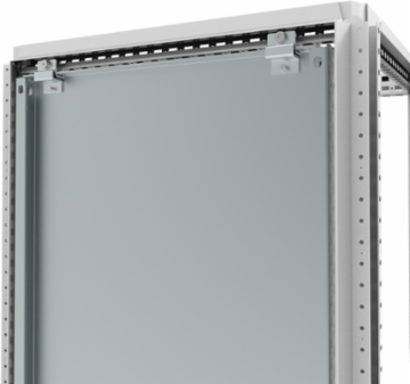

Mounting Plate Brackets For Rear Mounting, MPA-R provides plate mouning flush with enclosure frame. This Mounting Plate Brackets For Rear Mounting, MPA-R, MPA04R item measures 50x50x38mm with a material of Steel, finish Zinc Plated.
Features
- Description: To fix mounting plates to the enclosure from rear. The kit includes brackets for fixing the mounting plate flush with the enclosure frame or set back behind the enclosure frame, adding +20mm of useful depth for mounting components. These brackets are needed when rear fixation is required or when the enclosure is ordered without the mounting plate (PE) as an alternative to MPA06/MPA04. Unmounting from both the front and rear is possible.
- Material: 3 mm zinc plated steel.
- Pack quantity: 2 top brackets, 2 bottom brackets, 2 brackets for flushing the mounting plate with the frame and 2 brackets for setting the mounting plate back behind the frame with mounting accessories.
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 50
- Works With
- IEC
- Finish
- Zinc Plated
- Package Quantity
- 2
- Material
- Mild Steel
- Color
- Unpainted
- Consist of
- Mounting Plate Brackets For Rear Mounting; Mounting Components and Instruction Manual
Height (H)50
Depth (D)38
Product FamilyFree-Standing
Thickness (T)3
Enclosure MaterialMild Steel
Size1.97 x 1.97 x 1.5 inch
Construction11 gauge
