Weidmuller 9535220000 MPC 07/12/12 TRSP
- MPN: 9535220000
- PPN: WDM-9535220000
CAD
$40.76
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

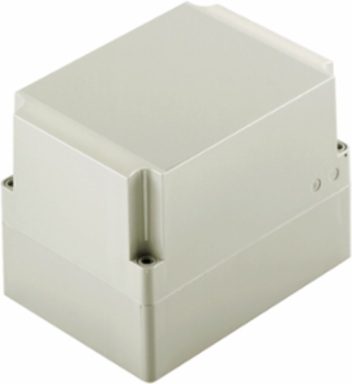

MPC (polycarbonate empty enclosure), Empty enclosure, Height: 75 mm, Width: 125 mm, Depth: 125 mm, Material: Polycarbonate, Light Grey, Transparent
Documentation & Downloads
Specifications
Approvals
- Approvals
- EAC
ROHSConform
General Information On Accessories
- Material
- Polycarbonate

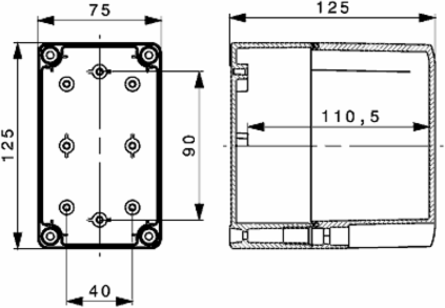

Dimensions And Weights
- Width
- 125 mm
- Height
- 75 mm
- Depth
- 125 mm
- Weight
- 300 g
Width (inches)4.921 inch
Height (inches)2.953 inch
Depth (inches)4.921 inch
Net weight302 g
Horizontal Assembly
- WDU 10 / ZDU 10
- 1x6
- WDU 2,5 / ZDU 2,5 / IDU 2,5
- 1x13
- WDU 4 / ZDU 4
- 1x11
WDU 16 / ZDU 161x1
WDU 35 / ZDU 351x1
WDU 6 / ZDU 61x8
Classifications
- ETIM 6.0
- EC000261
- eClass 9.0
- 27-18-01-01
- eClass 10.0
- 27-18-01-01
ETIM 7.0EC000261
eClass 9.127-18-92-90
UNSPSC31-26-15-02
Vertical Assembly
- WDU 10 / ZDU 10
- 1x6
- WDU 2,5 / ZDU 2,5 / IDU 2,5
- 1x13
- WDU 4 / ZDU 4
- 1x11
WDU 16 / ZDU 161x5
WDU 35 / ZDU 351x4
WDU 6 / ZDU 61x8
Cable Glands, Top/Bottom
- M12
- 1
- M20
- 1
M161
Cable Glands, Right
- M12
- 4
- M20
- 3
M163
General Information
- Areas of use
- Building systems and technology, Transportation, Packaging industry, Machine construction
- Material
- Polycarbonate
- Operating temperature, min.
- -50 °C
- Protection degree
- IP66, IP67
- Lid attachment
- 4 polyamide crosshead screws
Torque for lid screws0.8 Nm
Seal materialPolyurethane
Operating temperature, max.130 °C
Enclosure attachmentHoles 4.5 mm
Integral fixingthanks to self-tapping screws
